Documenting Pressure Calibrator
Product Details :

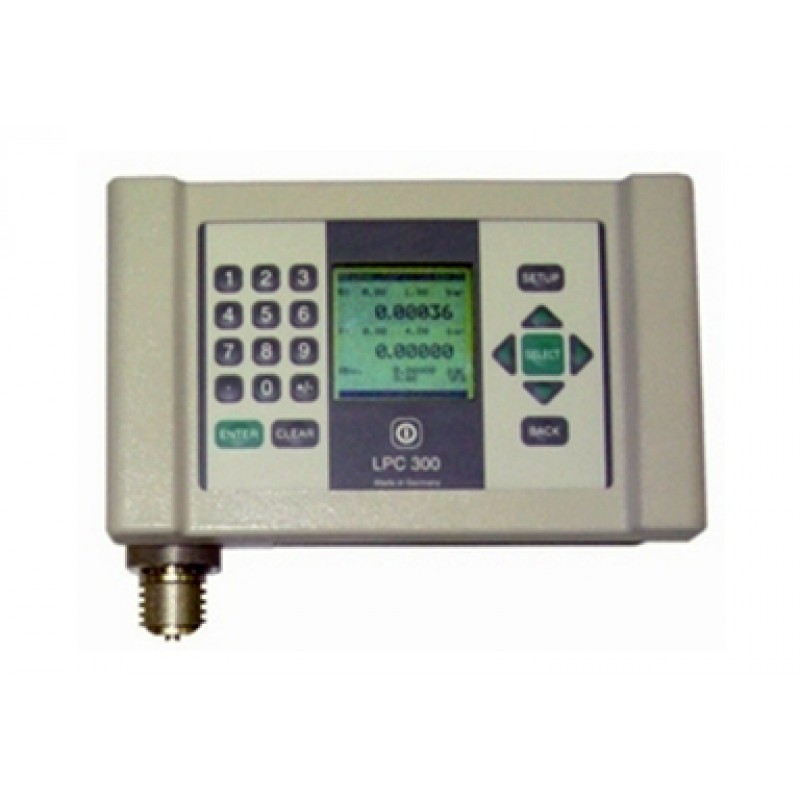

LPC 300 documenting pressure calibrator uses an innovative system of the pressure sensor. Unlike the conventional pressure calibrator that uses a remote pressure sensor to extend the rangeability of the product, LPC 300 uses an interchangeable plug and play pressure sensor. In this way the pressure calibrator head is always directly connected to the pressure generator, making the system easy to operate and much more transportable without having an annoying flying cable connection between the head and the remote sensor.
LPC 300 can store up to 5 sensors coefficiences, fully digitally characterised and temperature compensated in a wide range from 0 and 50 Deg °C.
Ordering Information
Each LPC 300 is supplied as standard with 1 internal pressure sensor, a traceable calibration certificate, a rechargeable battery, an universal charger, an USB cable, Software, an user guide Model
- LPC300 I - Pressure Calibrator
- LPC300PC Pneumatic Pressure Calibrator
- LPC300HC Hydraulic Pressure Calibrator
- LPC300 HPC Combined Hydraulic Pneumatic kit
Standard Features:
- Accuracy 0,025 % FS including linearity, hysteresis and repeatability
- Gauge, differential, vacuum, and absolute ranges
- Extended temperature Compensated range from 0 to 50 Deg °C
- Ranges can be displayed in any of 15 pressure unit selectable
Technical Specifications:
| Range Code | Range | Accuracy | Resolution |
| LPC-S-0202-0 | -250 to 250 mbar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-0204-0 | -400 to 400 mbar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-1000-6 | -600 to 600 mbar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-0001-5 | -1 to 1.5 bar g | ±0.025 % FS | 0.01 mbar |
| LPC-S-0003-0 | -1 to 3 bar g | ±0.025 % FS | 0.01 mbar |
| LPC-S-0005-0 | -1 to 5 bar g | ±0.025 % FS | 0.01 mbar |
| LPC-S-0009-0 | -1 to 9 bar g | ±0.025 % FS | 0.01 mbar |
| LPC-S-0015-0 | -1 to 15 bar g | ±0.025 % FS | 0.0001 bar |
| LPC-S-0024-0 | -1 to 24 bar g | ±0.025 % FS | 0.0001 bar |
| LPC-S-0039-0 | -1 to 39 bar g | ±0.025 % FS | 0.0001 bar |
| LPC-S-0060-0 | 0 to 60 bar g | ±0.025 % FS | 0.0001 bar |
| LPC-S-0100-0 | 0 to 100 bar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-0160-0 | 0 to 160 bar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-0250-0 | 0 to 250 bar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-0400-0 | 0 to 400 bar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-0600-0 | 0 to 600 bar g | ±0.025 % FS | 0.001 mbar |
| LPC-S-1000-0 | 0 to 1000 bar g | ±0.025 % FS | 0.01 bar |
| LPC-S-0000-4-ABS | 0 to 400 mbar A | ±0.025 % FS | 0.001 mbar |
| LPC-S-0000-6-ABS | 0 to 600 mbar A | ±0.025 % FS | 0.001 mbar |
| LPC-S-0001-0-ABS | 0 to 1 bar A | ±0.025 % FS | 0.01 mbar |
| LPC-S-0001-6-ABS | 0 to 1.6 bar A | ±0.025 % FS | 0.01 mbar |
| LPC-S-0002-5-ABS | 0 to 2.5 bar A | ±0.025 % FS | 0.01 mbar |
| LPC-S-0004-0-ABS | 0 to 4 bar A | ±0.025 % FS | 0.01 mbar |
