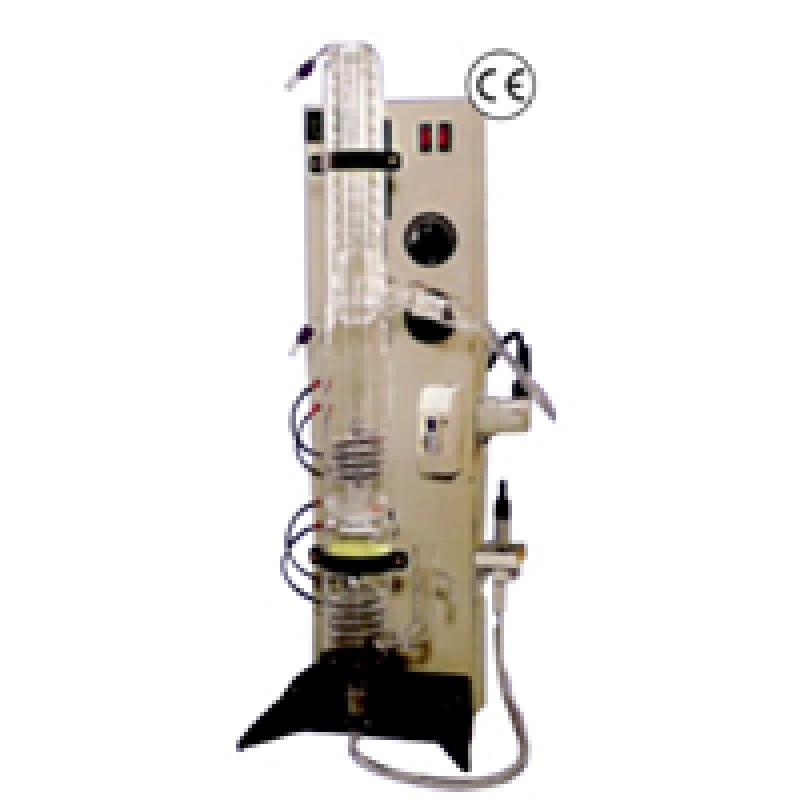

QUARTZ DISTILLATION APPARATUS REW-194

Product Details :

• The water distillate from Quartz Single/Double Distillation apparatus is beyond compare with water distillate obtained from other types/method of distillation apparatus.
• Pyrogen free distillate obtained which is free of heavy metals.
• Instant distilled water flow.
• Quartz boiler (SiO2) is chemically inert to most solvents and acids, hence purer distillate.
• No heat loss in the boiler, hence saves electrical power.
• High performance with low maintenance.
• Compact design with all contact of water with High Pure Electronic Grade Transparent Quartz only.
• The main unit has got a bottom boiler and top boiler with condenser, which can be easily separated (Demountable) for necessary cleaning or maintenance. A bottom vent is provided in bottom boiler for general cleaning and maintenance.
• The main constituent of Quartz is SiO2>99.9%, which makes the apparatus highly resistant to any thermal shock, devitrification and resistant to water and acids.
• The electrical heaters are so designed, they do not come into contact with water, because they are embedded inside a quartz tube, hence nullifying the possibility of metal contamination by the heater.
• The distillate obtained from this apparatus is PYROGEN FREE, it is also free from metal ions.
• Demountable ball joint.
• Spiral heaters has better life span than tubular sheathead heater.

SINGLE STAGE QUARTZ DISTILLATION WITH QUARTZ BOILER & CORNING CONDENSER

MODEL (SINGLE STAGE)	#REW-10SS	#REW-15SS	#REW-20SS	#REW-25SS
OUTPUT CAPACITY	1.0 ltrs/hr	1.5 ltrs/hr	2.0 ltrs/hr	2.5 ltrs/hr
BIOLOGICAL PURITY	Pyrogen Free
CONDUCTIVITY	1.5-3.0 µS/cm
DISTILLATE TEMPERATURE	500C-600C+50C
SAFETY (OPTION)	Low water cut off device for safety of the heating element.(Option)
ELECTRIC SUPPLY	220/240 V AC



DOUBLE STAGE QUARTZ DISTILLATION WITH QUARTZ BOILER & CORNING CONDENSER

MODEL (DOUBLE STAGE)	#REW-10DS	#REW-15DS	#REW-20DS	#REW-25DS
OUTPUT CAPACITY	1.0 ltrs/hr	1.5 ltrs/hr	2.0 ltrs/hr	2.5 ltrs/hr
BIOLOGICAL PURITY	Pyrogen Free
CONDUCTIVITY	1.5-3.0 µS/cm
DISTILLATE TEMPERATURE	600C-750C+50C
SAFETY (OPTION)	Low water cut off device for safety of the heating element.(Option)
ELECTRIC SUPPLY	220/240 V AC



OPTION

  LWCO - Low Water Level Cut-off Device for general safety of the heating system

SINGLE STAGE QUARTZ DISTILLATION WITH QUARTZ BOILER & QUARTZ CONDENSER

MODEL (SINGLE STAGE)	#REW-10FF	#REW-15FF	#REW-20FF	#REW-25FF
OUTPUT CAPACITY	1.0 ltrs/hr	1.5 ltrs/hr	2.0 ltrs/hr	2.5 ltrs/hr
BIOLOGICAL PURITY	Pyrogen Free
CONDUCTIVITY	Less than 0.1 µS/cm
STAGES	Available in Single or Double Stage (as ordered)
DISTILLATE TEMPERATURE	600C-750C+50C
SAFETY (OPTION)	Low water cut off device for safety of the heating element.(Option)
ELECTRIC SUPPLY	220/240 V AC



MODEL (SINGLE STAGE)	#REW-30FF	#REW-40FF	#REW-50FF
OUTPUT CAPACITY	3.0 ltrs/hr	4.0 ltrs/hr	5.0 ltrs/hr
BIOLOGICAL PURITY	Pyrogen Free
CONDUCTIVITY	Less than 0.1 µS/cm
STAGES	Available in Single or Double Stage (as ordered)
DISTILLATE TEMPERATURE	600C-750C+50C
SAFETY (OPTION)	Low water cut off device for safety of the heating element.(Option)
ELECTRIC SUPPLY	220/240 V AC

DOUBLE STAGE QUARTZ DISTILLATION WITH QUARTZ BOILER & QUARTZ CONDENSER

MODEL (DOUBLE STAGE)

#REW-10FS

#REW-15FS
