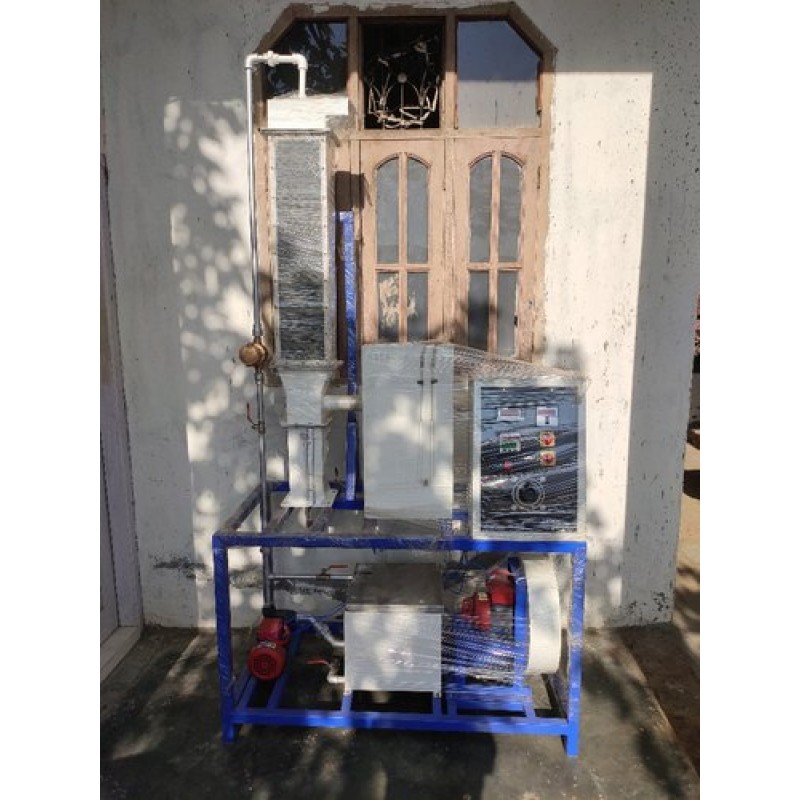

Experimental Water Cooling Tower Apparatus

Product Details:
Description
 Experimental water-cooling tower is a forced draft counter flow type cooling tower specially designed for the Engineering students to provide them insight about actual working of tower. In this system, air from a fan enters at the bottom of the tower and after passing through the mesh packing, discharges into the atmosphere via a duct. Airflow is controlled by a butterfly valve on the blower's delivery line. Water is evenly distributed over the packing by nozzles at top of the tower. Water flow and temperatures can be measured and controlled with suitable instrumentation provided. A water tank at the bottom fitted with level gauge enables to show the exact evaporation loss. Front side acrylic sheet provides actual visualization of cooling tower operation. Air and water flow rates as well as inlet water temperatures can be varied to have different sets of readings.
Experimentation/Learning Objectives • Actual visualization of the cooling tower operation. • To determine the mass transfer coefficient.
Utilities Required • Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection. Earth voltage should be less than 5 volts. • Water Supply & Drain. • Floor area: 1.5 m x 1m.
Technical Details
 • Tower : Material Stainless Steel Size: Cross-Section (150x150) mm, Height 750 mm • Packing : Expanded wire mesh. • Air Circulation : By forced draft fan, arrangement is done to vary air flow rate. • Air Flow Measurement : Orifice meter with U-tube manometer. • Water Flow Measurement : By Rotameter. • Dry & Wet Bulb Temp. : Measured by Temperature Sensors. • Hot Water Tank : Material Stainless Steel, Double wall, insulated with ceramic fibre wool • Hot water circulation : Magnetic Pump • Heater : Nichrome wire heater • Temperature sensors : RTD PT-100 type, 6 Nos. • Control panel comprising of : Digital Temp. Controller : PID Controller, 0-199.9°C (For hot water tank) Digital Temp. Indicator : 0-199.9°C, with multi-channel switch With Standard make On/Off switch, Mains Indicator & fuse etc. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Pain
