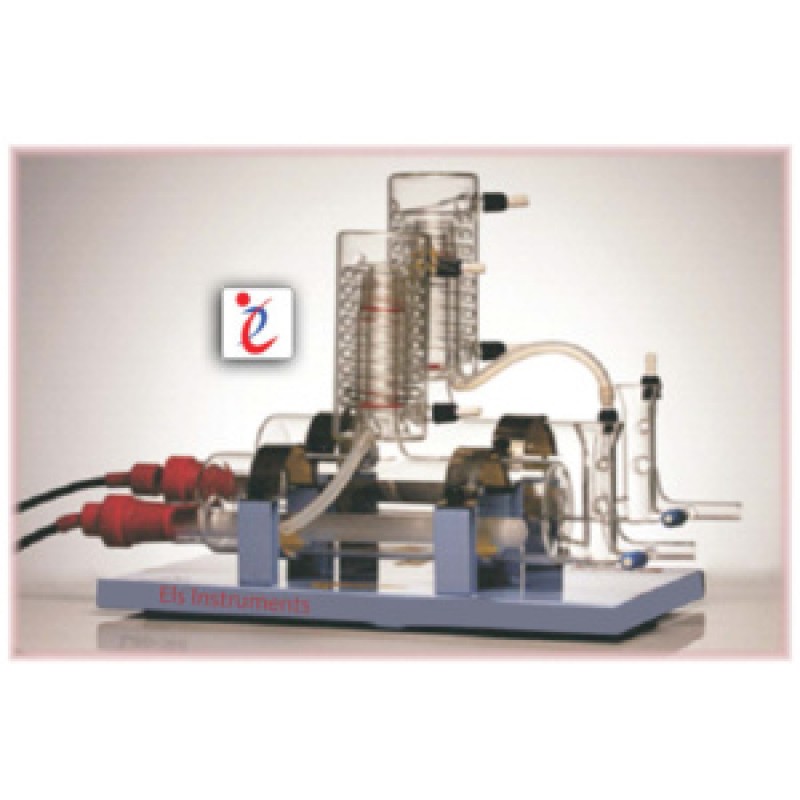

(Double Quartz Boiler & Quartz Condenser & Quartz Heater with built in triple safety feature)
TECHNICAL SPECIFICATIONS:
The below output result can be achieved by using treated water as a boiler feed
| CAT.NO: | EBSD-2 | EBSD-4 | EBSD-8 |
| Output | 2 litres/hr, single distilled | 4 litres/hr, single distilled | 8 litres/hr, single distilled |
| Boiler | QUARTZ | QUARTZ | QUARTZ |
| Condensor | QUARTZ | QUARTZ | QUARTZ |
| pH | 6.9-7.0 | 6.9-7.0 | |
| Conductivity, μScm-1 | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 |
| Temperature | 50-60°C | 50-60°C | 50-60°C |
| Pyrogen content * | Pyrogen free | Pyrogen free | Pyrogen free |
| Water supply | 2 litre/min x 2 Input | 2 litre/min x 2 Input | 4 litre/min x 2 Input |
| Power requirement | 3 kW | 6 kW | 12 kW |
| Electricity supply | 220 or 240V,50-60Hz, single phase | 220 or 240V,50- 60Hz, double phase | 220 or 240V,50-60Hz, three phase |
