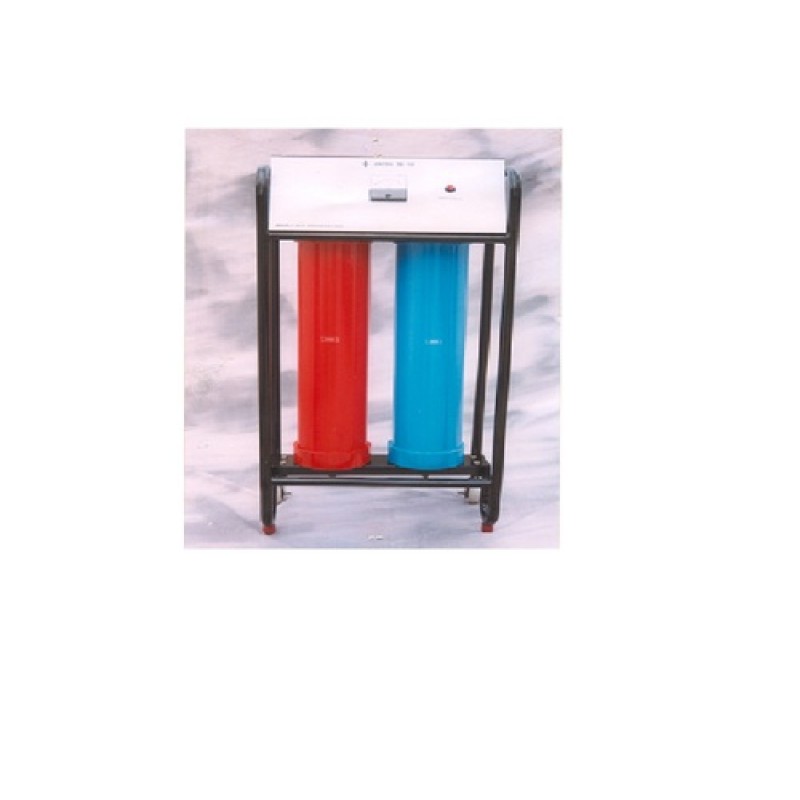

Ion Exchange Unit

Cation Column

Anion Column

No. Required

One

One

Normal Flow

Approximately 50 ltrs

Type of Resin

AUCHTEL CATHION 20 H

AUCHTELA 1116

Type of Control Valve

Direct Flow (valves are small)

M.O.C.

Less than 10 MPC

Less than 10 T.D.S

Regeneration Chemical

HCL Acid 3 %

2 Ltrs HCL. + 10 Ltrs D.M. Water

Sodium Hydroxide

250 gms + 10 Ltrs.

D.M. Water

Resin Qty

4 Ltrs

4 Ltrs

Regeneration Tank

P.V.C

P.V.C

Reg. Tank Capacity

2 Ltrs

2 Ltrs
