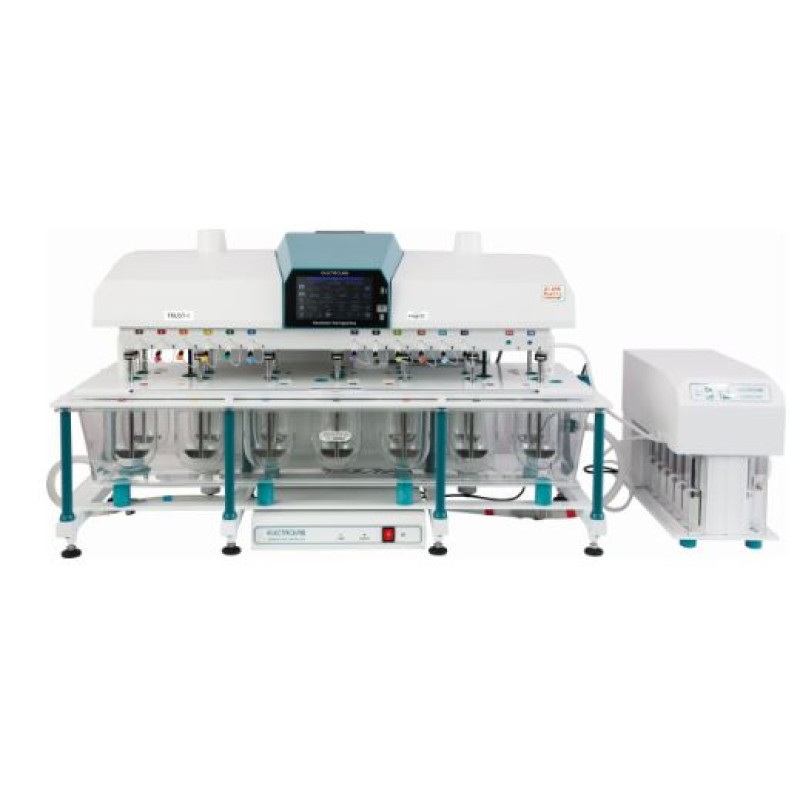

TrustE-14 with manual syringe sampling
Product Details :
- 7" TFT touch screen display
- LAN connectivity allows central printing
- Multilevel security with password for 250 users with user programmable role
- Alphanumeric data entry of product and user details
- Complies with USP, IP, Ph. Eur. and JP specifications
- Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products
- Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
- Easy Snap™
- -Fit shaft locking mechanism for positive engagement and wobble free operation
- Molded clear water bath
- Easy to empty and clean water bath with bottom drainage
- Precise individual vessel centering system
- Adjustable leveling of instrument
- Vibration free smooth motorized lift movement
- Isolated temperature controller and water circulating
- pump (vibration-free & precise)
- 1000 programmable products
- 24 programmable sampling intervals
- 10000 test report storage
- Instrument accessories like paddles, baskets, vessels etc. are laser marked with serial numbers
- Designed to minimize routine validation
- Programmable report template
- Report for online validation of test, product, error log during the test, logbook, audit trial
- 21 CFR complaint, Biometric, Vibro
- Programmable sample volume from 1 ml to 20 ml
- Audio-visual indicators for system status
- Power failure detection and auto recovery facility
- Delight technology enabling audio visual indication of instrument status
Specifications :
Model | TrustE-14 |
Speed range | Variable speed from 20 to 300 RPM |
Speed accuracy | ±0.5 RPM |
Temperature range | 20◦C to 40◦ C (extended range 10 to 40◦ C and 20 to 55 ◦ C optional) |
Temperature accuracy | ±0.1 C |
Display | 7" TFT touch screen display |
No. of protocol | 1000 maximum |
Sample interval | Maximum 24 of 1 min to 999 hrs, 59 min |
Printer interface | serial port (80 column) or any printer (via LAN) post script or embedded thermal printer (optional) |
Connectivity | Ethernet, RS – 232 ,RS-485 |
Bath size (L x W x H) | 705 x 374 x 200 mm |
Heater | 1 kW/230 VAC, material S.S. 304 with sensor |
Dimensions (L x W x H) | 705 x 505 x 645 mm |
