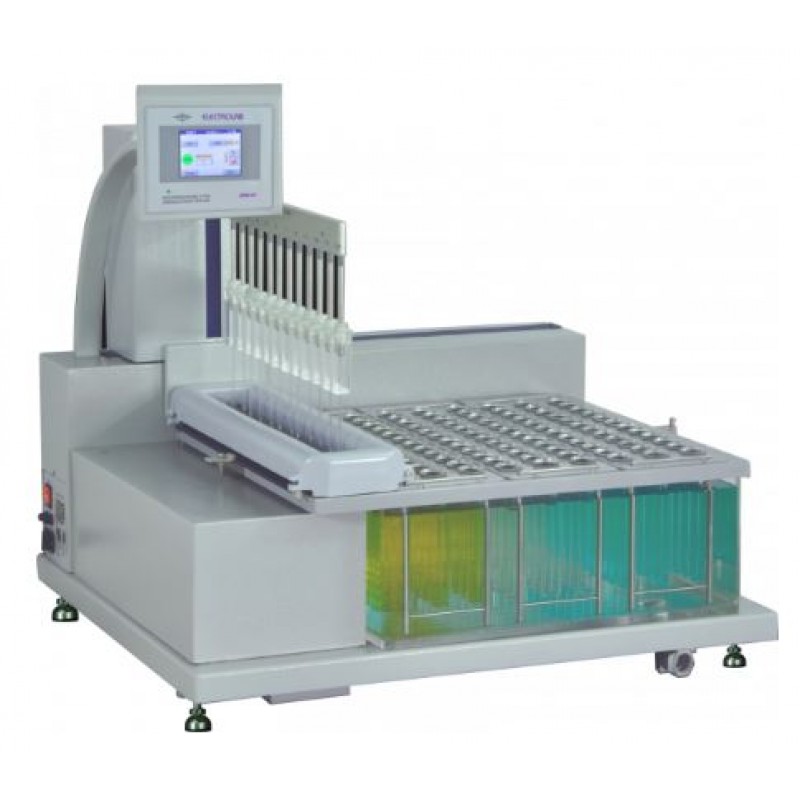

Reciprocating Dissolution Tester ERD-07
Product Details :
- Complies to current USP Apparatus 7 specifications
- Ideal for extended release products or any dosage form requiring release profiling at multiple pH levels
- Select between multiple configurations of rows, vessels and vessel volume to meet testing needs for USP 7
- 20 programmable protocols with 24 sample intervals
- 2 level security with password
- Touch screen with graphical display for user friendly operation
- Dip rate ranges between 5 to 50 dpm with an accuracy of ±1%
- Programmable hold, drain time and programmable dip rate in each row
- Temperature range between 30° C to 40° C with an control accuracy of ± 0.2° C
- Online validation of dpm and temperature
- Rugged clear acrylic Water bath
- PC & LAN Connectivity allows centralized printing, storing and sharing of data.
- Retractable curtain to prevent media loss by evaporation
- Can be configured with 100 ml and 1000 ml capacity vessels along with vessel tray
Specifications :
| Model | ERD-07 |
| Material of Construction | SS 316 |
| Water Bath | Clear acrylic moulded water bath |
| Bath capacity | 44 litres |
| No. of rows | 6 |
| Vessel capacity (ml) | 300 |
| Reciprocating height (mm) | 100 |
| No. of dips rate (dpm) | 5 to 50 |
| Accuracy (°C) | ± 0.2 |
| Controlled temperature range (°C) | 30 to 40 |
| Display | Touch screen |
| Motor | Single shaft Motor 10 kg cm |
| Heater | 1000 Watts, 230 V AC, S. S 304 |
| Mains fuse | 1 Amp |
| Heater fuse | 6 Amp |
| Dimension (L X W X H) | 795 X 675 X 780 mm |
