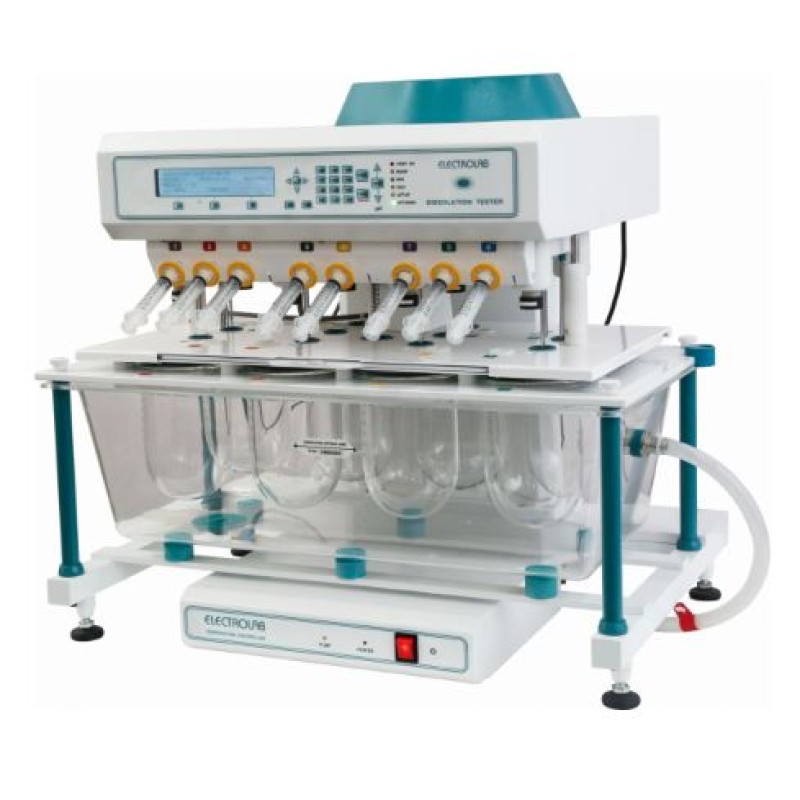

Inspire 8 Manual Syringe Sampling
Product Details :
- LCD display of 40 characters and 4 lines for user friendly operation
- Multilevel security with password
- Alphanumeric data entry of product and user details
- Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products
- Complies with USP, IP, Ph. Eur. and JP specifications
- Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
- Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation
- Clear water bath with metal top-plate
- Precise individual vessel centering system
- Adjustable leveling of instrument
- Vibration free smooth motorized lift movement
- Isolated water circulating pump for precise temperature control of the water bath
- 20 programmable protocols
- 16 programmable sampling intervals
- Easy to empty and clean water bath with bottom drainage
- Designed to minimize routine validation
- Report for online validation of test, monograph, error log during the test
- Programmable wake-up for temperature control
- Programmable sample volume from 1 ml to 99 ml
- Audio-visual indicators for system status
- Power failure detection facility
Specifications :
Model | Inspire-08 |
Speed range | Variable speed from 20 to 300 RPM |
Speed accuracy | ±1 RPM |
Temperature range | 20◦C to 40◦C |
Temperature accuracy | ±0.1◦ C |
Display | 40 x 4 character backlighted LCD |
No. of protocols | 20 maximum |
Sample interval | Maximum 16 of 1 min to 23 hrs, 59 min |
Printer interface | Serial port |
Printer supported | 80 column Dot Matrix printer |
Bath size (L x W x H): | 705 x 374 x 200 mm |
Heater | 1 kW/230 VAC, material S.S. 304 with sensor |
Pump supply | 230 VAC, 50 Hz |
Pump type | Magnetic coupling |
Pump flow rate | 10 litres/minute maximum |
Power supply | 220/ 230 VAC, 50/60 Hz, 1.3 kW/6 Amp |
Dimensions (L x W x H) | 705 x 505 x 645 mm |
