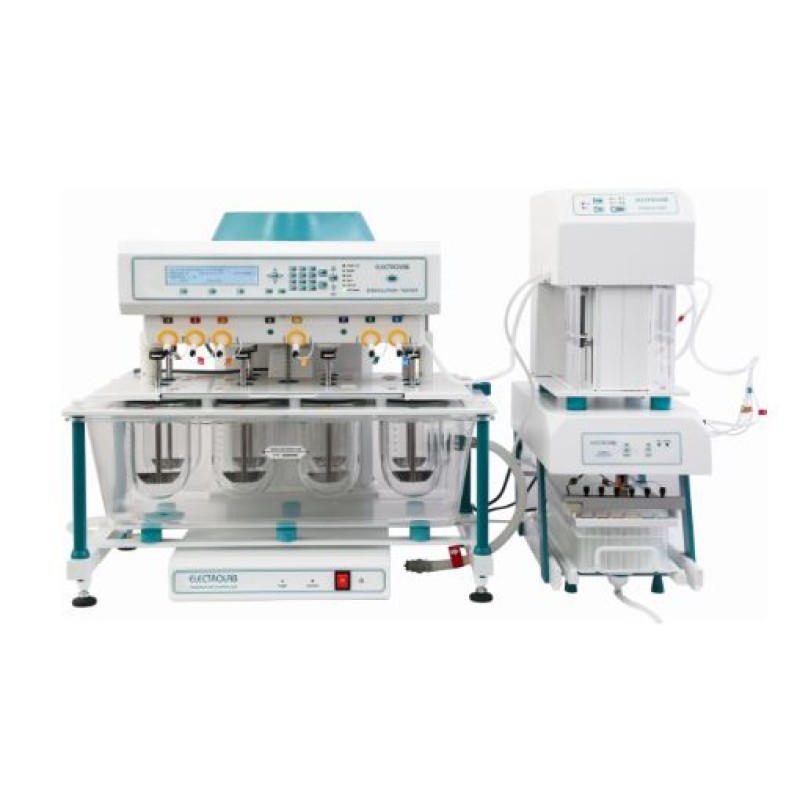

Inspire-08 with Sample Collector (Dc)
Product Details :
- LCD display of 40 characters and 4 lines for user friendly operation
- Multilevel security with password
- Alphanumeric data entry of product and user details
- Unique TimeAction™ function which allows media
- changeover and infinity test run, ideal for sustained and controlled release products
- Complies with USP, IP, Ph. Eur. and JP specifications
- l Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods
- Easy Snap-FitTM shaft locking mechanism for positive engagement and wobble free operation
- Clear water bath with metal top-plate
- Precise individual vessel centering system
- Adjustable leveling of instrument
- Vibration free smooth motorized lift movement
- l Isolated water circulating pump for precise temperature control of the water bath
- 20 programmable protocols
- 24 programmable sampling intervals
- Easy to empty and clean water bath with bottom drainage
- Designed to minimize routine validation
- Report for online validation of test, monograph, error log during the test
- Programmable wake-up for temperature control
- Programmable sample volume from 1 ml to 25 ml
- Audio-visual indicators for system status
- Power failure detection facility
- Auto drop synca
Specifications :
| Model | Inspire-08 |
| No. of stations | 8 |
| Speed range | 20 RPM to 300 RPM |
| Speed accuracy | ±1RPM |
| Temperature range | 0 0 20 C to 40 C |
| 0 Temperature accuracy (at 37 C) | 0 ± 0.1 C |
| Display | 40 x 4 character LCD |
| No. of protocols | 20 |
| No. of samples | 24 |
| Sample interval | 1 min to 999 hrs, 59 min |
| No. of syringes | Standard : 6, Optional : 8 |
| Interface port | RS 485 |
| Stirrer drive | High performance BLDC (maintenance-free) |
| Vessel capacity | 100 ml, 250 ml, 1 L, 2 L, 4 L |
| Water bath | One piece moulded clear or amber |
| Bath capacity | 28 L |
| Temperature controller | Heater : 1kW, SS 316 with thermal protection Sensor : RTD |
| Electrical power | 220/230 VAC, 50/60 Hz,1.3 kW/6 Amp 110 VAC, 50/60 Hz,1.3 kW/6 Amp |
| Dimensions (W x H x D) : | Basic | Offline Automation System |
| 124 x 65 x 71 cm | 170 x 65 x 71 cm | |
| Weight : | Basic | Offline Automation System |
| 84 kg | 141 kg |
