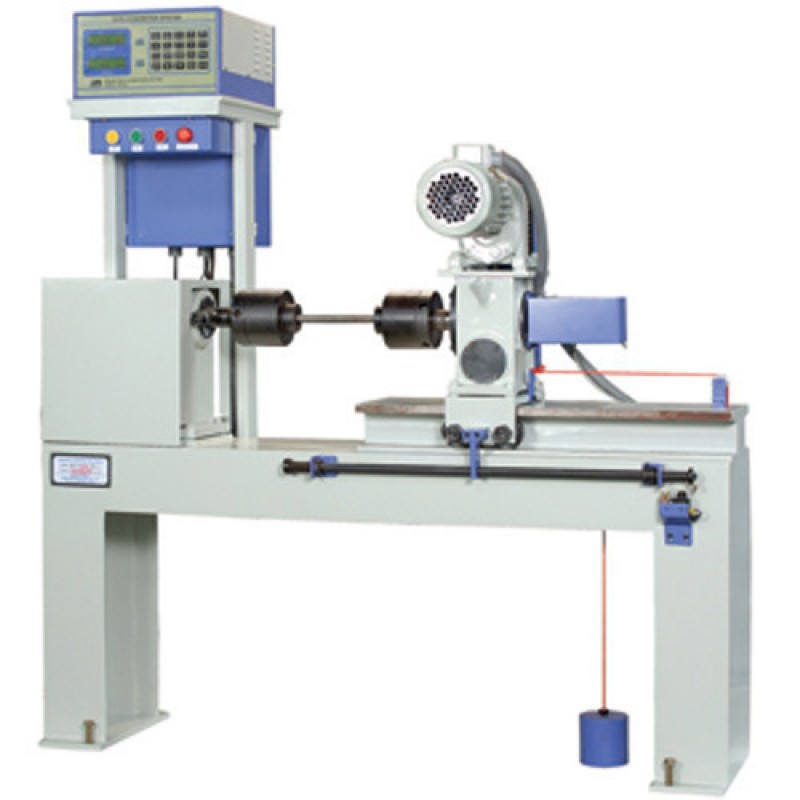

Digital Torsion Testing Machine
Product Details :
We are offering Torsion Testing Machine.
| Type of Testing Machines | Compression Testing Machine |
| Grade | Automatic |
Features :
- Suitable for Torsion and twist tests on various metal rods and flats.
- Torque measurement by torque cell.
- One range with a high resolution throughout the range.
- Geared motor to apply the torque to specimen through gear box
- Measurement of Angle of Twist by Rotary Encoder.
- Display of Torque and Angle of twist on LCD display provided on Data Acquisition System.
- Facility for connecting the DAS Panel to PC
- Accuracy of torque measurement ± 1% in the range from 4% to 100% of machine capacity.
Specifications :
| Sr. No. | Specifications | TFTT-D- 100 Nm | TFTT-D- 200 Nm | TFTT-D- 500 Nm | TFTT-D- 1000 Nm | TFTT-D- 2000 Nm |
| 1 | Max. torque capacity (Nm) | 100 | 200 | 500 | 1000 | 2000 |
| 2 | Torque Resolution (Nm) | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 |
| 3 | Angle of twist (Degree) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| 4 | Torsion speed and direction | 1.5 RPM Reverse | 1.5 RPM Reverse | 1.5 RPM Reverse | 1.5 RPM Reverse | 1.5 RPM Reverse |
| 5 | Distance between grips (mm) | 0 – 400 | 0 – 450 | 0 – 500 | 0 – 600 | 0 – 1000 |
| 6 | Grips for round bar of dia (mm) | 4 – 8 8 – 12 | 7 – 10 10 – 15 15 – 20 | 10 – 17 17 – 24 24 – 30 | 10 – 18 18 – 26 26 – 34 | 20 – 30 30 – 40 40 – 50 |
| 7 | Grips for flat bars thickness Width | 2 – 8 25 | 3 – 10 30 | 5 – 12 40 | 5 – 15 50 | 10 – 20 60 |
| 8 | 3 Ph, 440V, 50 Hz, AC Motor HP Approx. | 0.5 | 0.5 | 1 | 1 | 2 |
