Ultra Low Deep Freezer

Product Details:

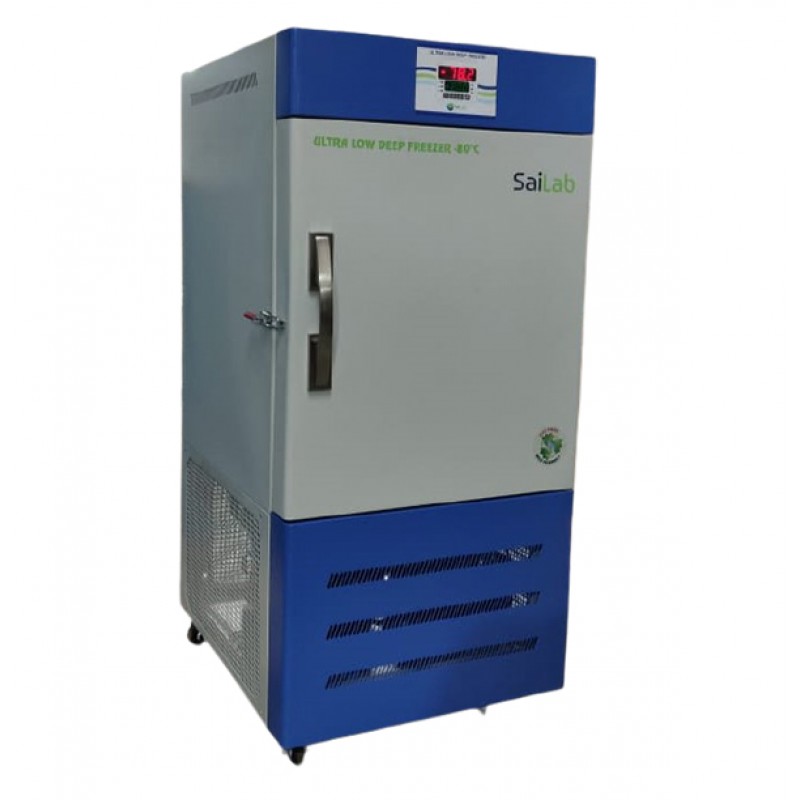

SAILAB EQUIPMENT’S “ULTRA LOW PLASMA FREEZER” are specially designed for Storing Plasma Bags under a specific temperature of -80°C. The Ultra-Low Plasma Freezeris fully CNC made machine with Ergonomics design. The Chamber outer body is made of Mild Steel duly Powder Coated and inner chamber made of Stainless Steel 304 grade for STD Model, and fully Stainless-Steel unit can be supplied with inner and outer in SS304 grade steel.

FURTHER WE ALSO MANUFACTURE CUSTOMIZED SIZE OF ULTRA LOW PLASMA FREEZER AS PER USERS REQUIREMENT.

TEMPERATURE CONTROL

• Dual Display controller for Set and process value.
• Operating temperature -80°C.

• PT 100 (RTD) sensor.
• PUF insulated door to prevent loss of temperature.

• SS PUF insulated inner door to prevent loss of temperature.
• SAFETY FEATURES
• Lockable doors for added safety.

• 180 sec compressor “on” delay timer to safeguard the compressor.
• Password protected keypad locks.

• Door Alarm.
• Temperature variation alarm as user defined.

• Ultra Low Deep Freezer
• ultra-low-deep-freezer

• ultra-low-deep-freezer - SaiLab Equipment
• ultra-low-deep-freezer-manufacturers


KEY FEATURES OF ULTRA LOW PLASMA FREEZER

• Freezer available to store Plasma Bags from 90 bags to 300 bags.
• Inner made of SS304 Stainless steel and outer body Mild sheet duly powder coated.

• Outer door is coated with special material from inner side to prevent temperature to pass from the chamber to the door, to prevent ice formation on the inner side of the door
• SS304 Wire mesh basket with adjustable partition.
• Temperature -80°C. Accuracy ±3°C

• Temperature controller – Dual display of Set and Process Value.
• Audio Visual Alarm for high and low temperature variation with Door open.

• Non- CFC Refrigerator System with Dual compressor.
• 7 days Circular Chart Recorder.

• Castrol Wheel provided for easy movement of the unit.

OPTIONAL ACCESSORIES

• Temperature Display backup for 12hrs in case of power failure.
• Inbuild stabilizer.

• Single / Multi Data logging system with RS 485 Port.

DOCUMENTS

• Calibration certificate with supporting documents.
• User Manual.

• Warranty certificate.

TECHNICAL SPECIFICATION OF ULTRA LOW PLASMA FREEZER
