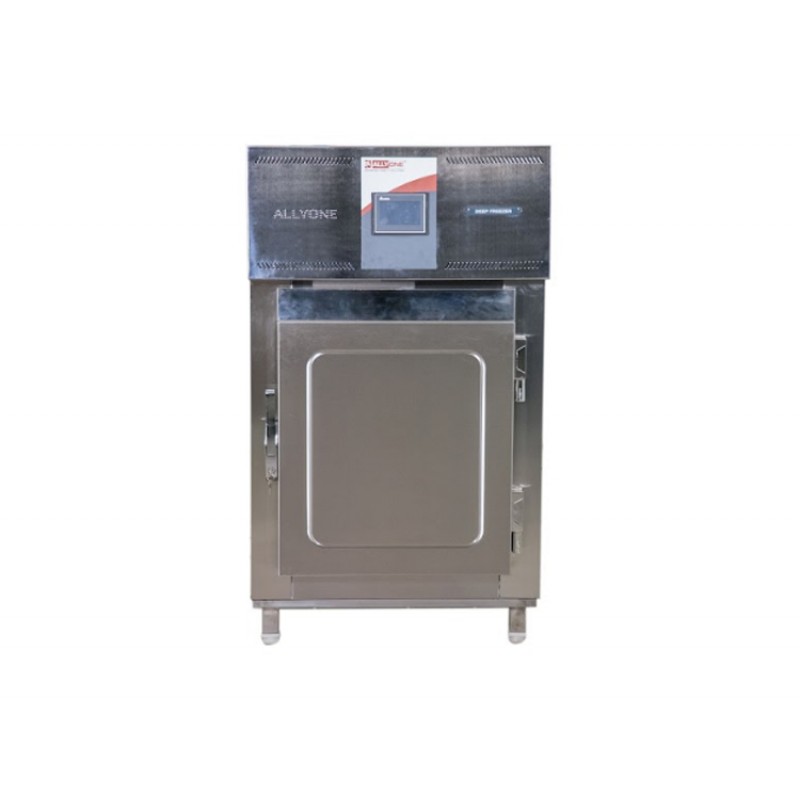

STAND ALONE DEEP FREEZER

Technical Specifications
Temperature Range:  -10°C to -30°C Accuracy: ≤ +/- 3.0°C Uniformity: ≤ +/- 5.0°C*
* Measured with high accuracy data-logger at sample storage area with standard Set Point.

Models	Cap. in liters	Internal size in mm	External size in mm	Tray Qty	Tray size in mm	Connected Load
AO/DF-15	150	520Wx500Dx600H	725Wx825Dx1285H	2	440Wx500Dx30H	0.75 KW
AO/DF-25	250	520Wx600Dx800H	725Wx925Dx1485H	2	440Wx600Dx30H	0.75 KW
AO/DF-40	400	620Wx650Dx1000H	825Wx975Dx1735H	3	540Wx650Dx30H	1 KW
AO/DF-50	500	620Wx650Dx1250H	825Wx975Dx1985H	3	540Wx650Dx30H	1 KW
AO/DF-60	600	720Wx575Dx1450H	925Wx900Dx2235H	4	640Wx575Dx30H	2.5 KW
AO/DF-80	800	720Wx775Dx1450H	925Wx1100Dx2235H	4	640WX775DX30H	2.5 KW

Standard Chamber Features & Provisions:

Construction: Dynamically Designed PUF filled Double walled, Inner Tank & outer body with PCGI/SS304/SS316 with PUF Density of 40Kg/m3-Thickness 100mm.
Trays: Perforated types (CNC punched). Strengthened with support rails to prevent deformations, Height adjustable to every ½”
Door: Heavy Duty Projected, PUF insulated door installed with imported hinges & lock.Entire door perimeter is secured with Silicone gasket to ensure air tight chamber.
Door Operation: Passcode protected door operation - from software & HMI
Control System:
Ergonomically designed Control Panel.
Ferrule printed wiring.
Advanced PLC Program with built in processor-based Auto Tuning.
4.3” HMI Color LED Display.
Built in Safety.
Advanced High Accuracy “Transmitter based sensors” with output of 4-20 mA.
Temperature Control: Efficient, Reliable, Time tested & Trustworthy Refrigeration Design.
PLC Safety Cut Off for Temperature: Low, Lower & High safety cut off .

Stand Alone Deep Freezer:
The Pharmaceutical & allied industries use Deep freezers for effective storage of drug products, life-saving vaccines and samples for diagnosis, but are also perfectly suited for temperature tests and aging subjected at sub-zero temperatures. They can be used for storage of fresh and frozen blood supplies and vaccines, also for storage of enzymes for research.
Allyone Deep freezers are available as an upright freezer or chest freezer, for your need for a precision-controlled storage equipment as low as -30°C. Allyone deep freezers have great safety features and are trustworthy & reliable.
