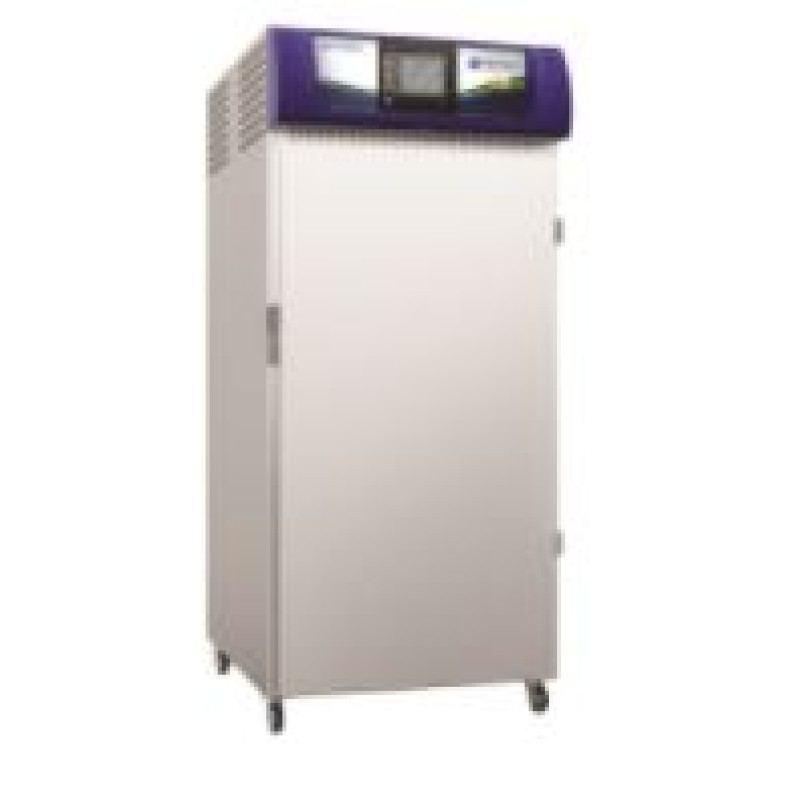

DEEP FREEZER

Product Details :

Thermolab Deep Freezer are equipped with the unique feature of automatic defrost system maintaining the temperature within + 5⁰ during defrost cycle.

Standard Features:

• Inside Stainless Steel and Outside Mild Steel Powder Coated OR   Stainless Steel.
• 100 mm Thick PUF Insulation.
• Adequate illumination inside the chamber
• PLC with 7” colour HMI display.
• Compressor with CFC Free R 404  (Eco Friendly) refrigerant
• Stand by refrigeration system with auto changeover
• 4 point temperature scanner with data logging facility.
• Safety alarm system (Danfoss Thermostat) to cut off the supply in case of temperature undershoot.
• Automatic defrost system maintaining the temperature within + 5⁰ during defrost cycle.
• Works on 230 V AC single phase 50 Hz
• 65 mm Port Hole with rubber seal to insert sensors for validation purpose.
• Complete with IQ, OQ and PQ documents and operations manual.

Optional Features:

• 21 CFR Part 11 compliance window based communication software for data management
• Door Access Security system
• Mobile Alert system

Specifications:

• Standard Model(S) : Inside S.S. 304 & outside mild steel powder coated
• GMP Model(G) : Inside S.S. 304 & outside S.S. 304
• Temperature Range: – 200C
• Temperature Uniformity: + 50 C

Documentation:

• Complete with IQ, OQ, PQ documents
• Operation and Maintenance manuals
• Training to end users
