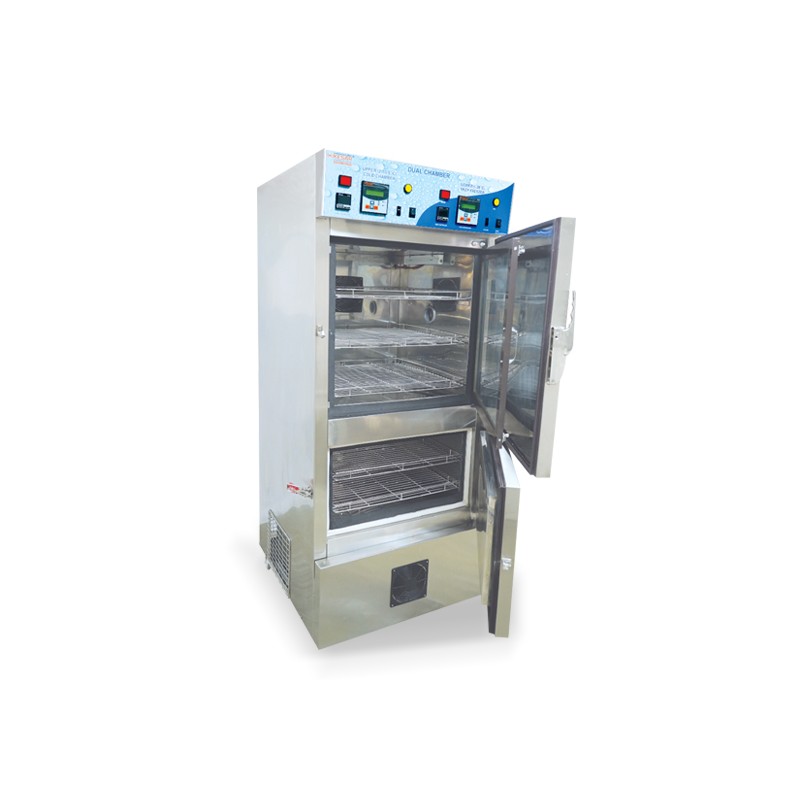

DUAL CHAMBER
FEATURES :
- Fabricated on fully automatic CNC machines.
- The inner working chamber is water & vapour tight high-grade stainless steel.
- All seams are arc-welded & passivity for strength & durability.
- Chambers are provide with effective air circulation system.
- Hermetic compressors build on cascade system with CFC free refrigeration.
- Equipment mounted on heavy castor wheels for easy movement.
- Heavy duty solid stainless duly electro polished wire mesh type trays are provided which are easy to clean, time & efforts saving, also adjustable for convenience.
TECHNICAL SPECIFICATION :
| Technical Specification | |
|---|---|
| Temperature Range | -50°C to -80°C |
| Accuracy | 3.0 °C |
| Uniformity | 10.0°C |
| Control System | PLC or PID Based |
MATERIAL OF CONSTRUCTION :
| Models | Material of Construction | |
|---|---|---|
| Interior | Exterior | |
| STD | S.S.304 Dull Finish | G.I Powder Coated |
| GMP | S.S.304 Dull Finish | S.S.304 Dull Finish |
| CGMP | S.S.316 Dull Finish | S.S.304 Dull Finish |
DUAL CHAMBER SIZE :
| Model | Capacity | Temp. Range | Inner Size in mm | Outer Size in mm | No. of Tray |
|---|---|---|---|---|---|
| GMP-DCC/U90/L90 | 90 Liter Upper | 2-80C | 450 X 450 X 450 | 750 X 900 X 1800 | 2 |
| 90 Liter Upper | -200C | 450 X 450 X 450 | 2 | ||
| GMP-DCC/U200/L100 | 200 Liter Upper | 2-80C | 600 X 600 X 600 | 850 X 1050 X 1900 | 2 |
| 100 Liter Upper | -200C | 600 X 600 X 300 | 2 | ||
| GMP-DCC/U200/L200 | 200 Liter Upper | 2-80C | 600 X 600 X 600 | 850 X 1050 X 2200 | 2 |
| 200 Liter Upper | -200C | 600 X 600 X 600 | 2 |
