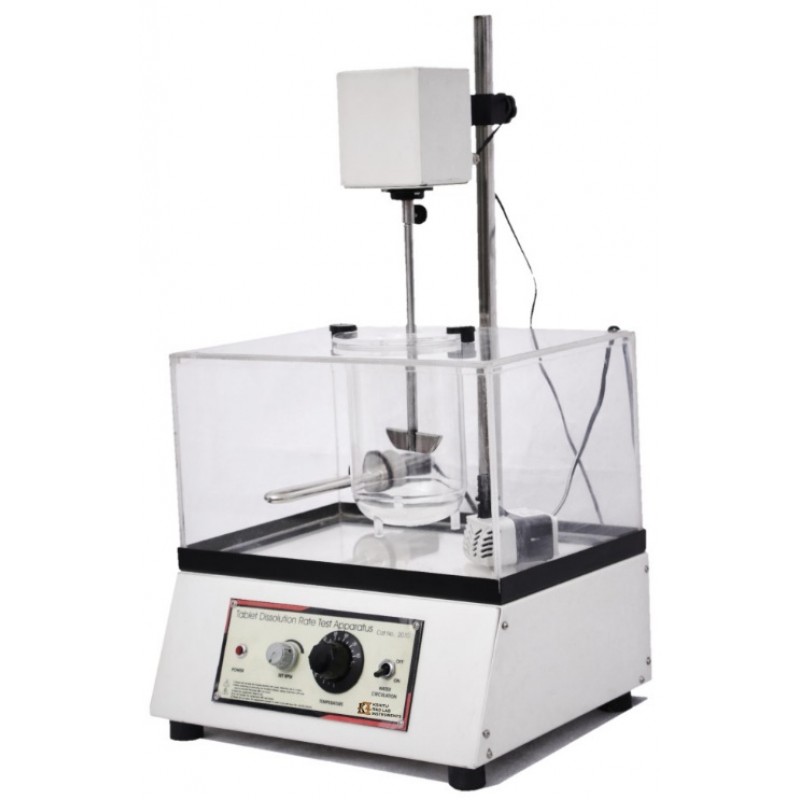

DISSOLUTION RATE TEST APPARATUS
MODEL NO.: KI- 2070- ½
Product Features:
A dissolution test uses an apparatus with specific test conditions in combination with acceptance criteria to evaluate the performance of the tablets. And this apparatus is used for testing Optimization of therapeutic effectiveness during product development and stability assessment & Routine assessment of production quality to ensure uniformity between production lots.
- 100 Hrs. Digital Timer
- Digital RPM Controller
- Digital Temperature Controller
- Polycarbonate Unbreakable Jar
- 16X2 α- Numeric LCD
Model
No. | KI-
2070 1/2 V4A | KI-
2070 1/2 V4D |
Rotation
Speed | 20
to 200 (+ 1rpm) | 20
to 200 (+ 1rpm) |
Timer | NA | 99:59
(100 Hours) |
Temperature | Analog
(Ambient to 80°C) | Digital
(Ambient to 45°C) |
Heater | 500
Watt | 500
Watt |
Display | NA | 16X2
?- Numeric LCD |
Keypad | NA | Soft
Touch |
Stirrer
System | 1=
Single Stage/ 2= Two Stage | 1=
Single Stage/ 2= Two Stage |
Paddle/
Basket | X=
1Set/ Y= 2 Set | X=
1Set/ Y= 2 Set |
Drive
System | DC
Motor | DC
Motor |
Power | 220V+10%
50Hz | 220V+10%
50Hz |
Dimensions | 650
x 340 x 355mm | 650
x 340 x 355mm |
Weight | 6.000
Kg. | 6.750
Kg. |
