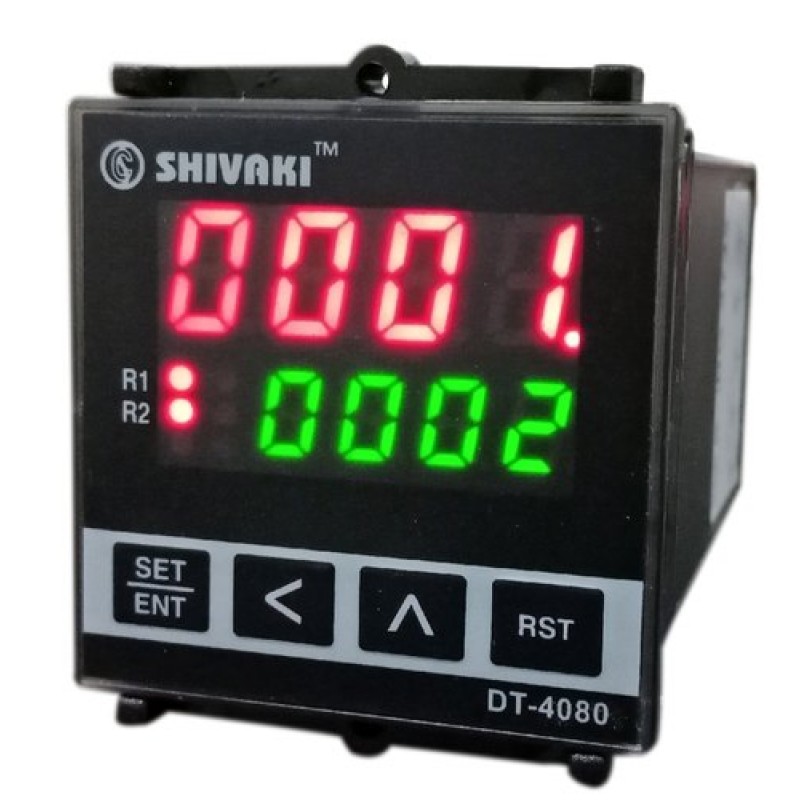

DIGITAL TIMER

Overview / Features :

Size Available In

• 72 X 72 | 48 X 48 MM

Range Selectable 9999 Hours/Min/Second

Reset Timer

Cyclic Timer

Timer With Alarm ( 72 X 72 MM )

SPECIFICATION :

O) Micro controller based, Double Display

O) Power Supply 220VAC

O) Range 0 To 9999 (4 Digit)

O) Output: Relay Contact/SSR

O) Unit of time selectable. (Minute/Second/Hour)

O) Resolution (With or Without Decimal Point) Selectable

O) On Time 0000 to 9999 as per range adjustable in set mode

O) Off Time 0000 to 9999 as per range adjustable in set mode

O) Total Time 0000 to 9999 as per range adjustable in set mode

O) Power on start from Off time or On time selection

O) Total time Count Up (if you set total time=0000) in run mode

O) Total time Count Down (if you set total time>0000) in run mode

O) Count up or down selectable

O) Relay output Delay off or Delay on selectable

O) Power down memory selectable

O) Accuracy up to tenth of Second (0.1 Second)

O) Timer Stop/Start by increment Key

O) Reset by Enter key in run mode

O) End Message @ Process complete
