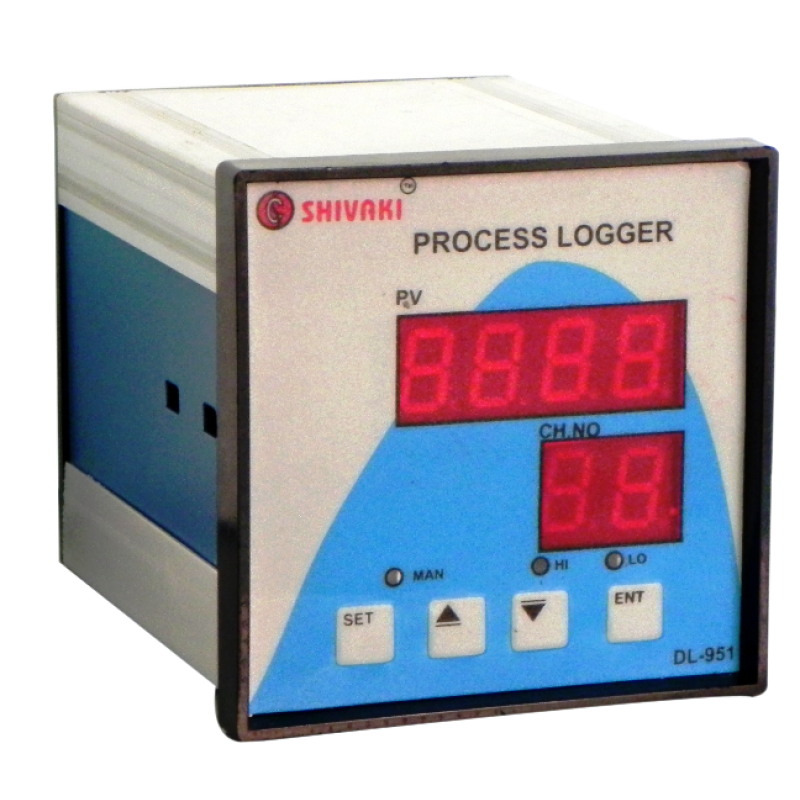

DATA LOGGER - LED DISPLAY

Overview / Features :

8,16,32 Channel

Optional:-

=> RS-485

=> Printer

=> 21 CFR

SPECIFICATION :

POWER    :    230 VAC +/- 10%, 50 Hz.

DISPLAY : 4/6 Digit alphanumeric red LEDs for process value display, 4 Digit seven segments green LEDs for channel number or RTC indicator LED. Printer Error indication.

DISPLAY TIME    :    2 seconds/channel (settable)

MEMORY    :    Non-volatile RAM.

FACILITIES    :    Auto / Manual, Channel skip, RTC.

PRINTER PORT    :     Suitable tof 80/132 column dot matrix printer

COMMUNICATION PORT    :     RS-232C or RS-485 multidrop. MODBUS protocol (OPTIONAL)

CONNECTIONS    :    50 pin 'D' type connector with extended terminal board having screw type terminals.

DIMENSIONS   :   96x96x165mm OR 192x92 x 165mm.

OPERATING TEMP.    :    0-55 C, 90% Rh Max, Non condensing
