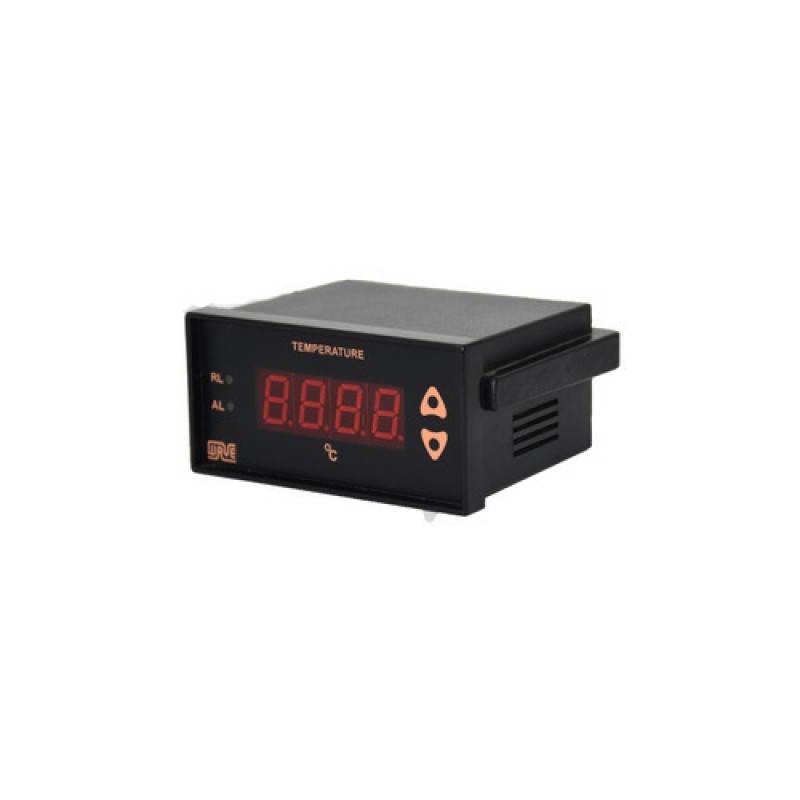

Ring & Ball Apparatus Controller

Product Details :

• Size 96(w)x48(h)x110(d)mm (Model - WTC-2001-R&B)
• Size 96(w)x96(h)x85(d)mm (Model - WTC-2201-R&B)
• Microcontroller based, Single or Double display
• Supply 220 V Ac
• Input RTD PT100
• Input Pushbutton to take Temperature Value
• Input Limit switch to start heating control
• Output 1. SSR for Heater 2. Buzzer
• Output 12Volt PWM for DC Motor speed Control
• PID Control
• Heating Control
• Range 0.0 to 200.0,
• Alarm 0.0 to 25.0 adjustable
• Ct 1 to 60 adjustable
• Auto-tuning require for pb, It & dt value
• Ramp Fix 5.0c/Minute
• Open display if Sensor break
• Relay trip if sensor breaks, connection open or connection reverse.
• Calibration Error correction by a front key switch (No preset setting)

Additional Information:

• Item Code: WTC-2101-RB
