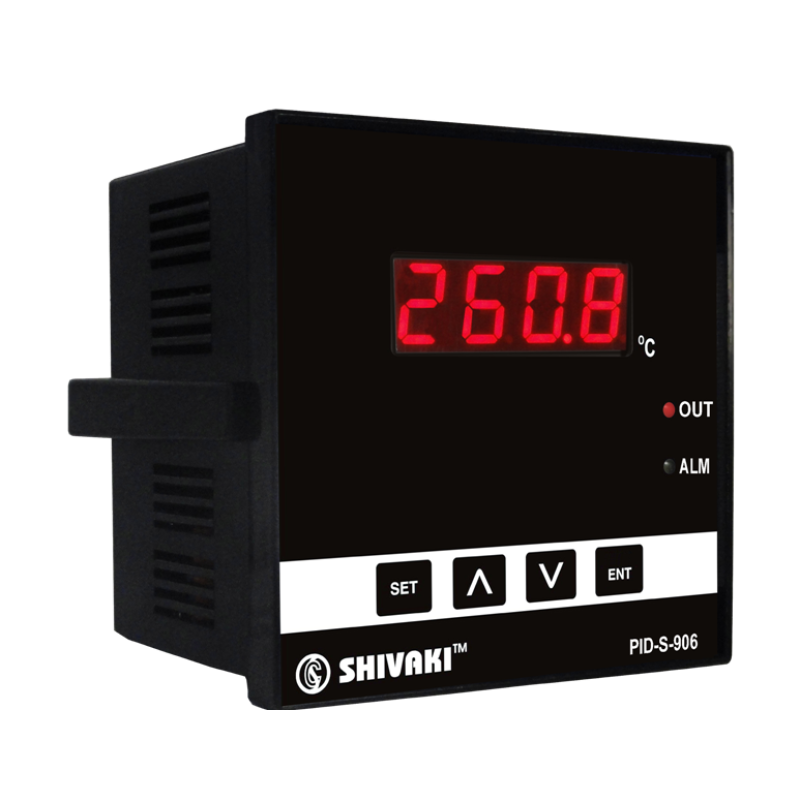

PID TEMP. CONTROLLER - SINGLE DISPLAY

SPECIFICATION :

O) Microcontroller Based Single Display

O) Power Supply SMPS 110VAC To 220VAC

O) Input: J, K or RTD Selectable

O) Output 1: Relay Contact/SSR

                     Alarm Relay Contact or Buzzer - Optional

                     High/Low Alarm - Optional

O) Control: PID or ON/Off

O) Range: J Type 0 To 750C

                 K Type 0 To 1200C

            RTD Type 0 To 400C

        RTD.1 Type -99.9 To 400.0C

O) Temperature As per range adjustable in set mode

O) High & Low Alarm 0.0 To 25.0 Or 0 To 250 As Per Range Adjustable

O) Ct 1 to 60 for ssr output & 10 to 120 second for Relay output adjustable

O) Auto tuning require for pb, It & dt value

O) Hysteresis 0.2 or 2 to 25.0c or 25c adjustable as per range selection for RTD

O) Hysteresis 2 to 250c adjustable as per range selection for J & K Type

O) Delay 0 to 250 second adjustable for cooling control

O) OPEn display if Sensor break & -rEV display if connections reverse.

O) Relay trip if sensor breaks, connection open or connection reverse.

O) End message if process complete

O) Calibration Error correction by front key switch (No preset setting)

O) Control Band setting

Overview / Features :

• Single Display
• Size Available In

• 96 X 96  |  72 X 72 MM
