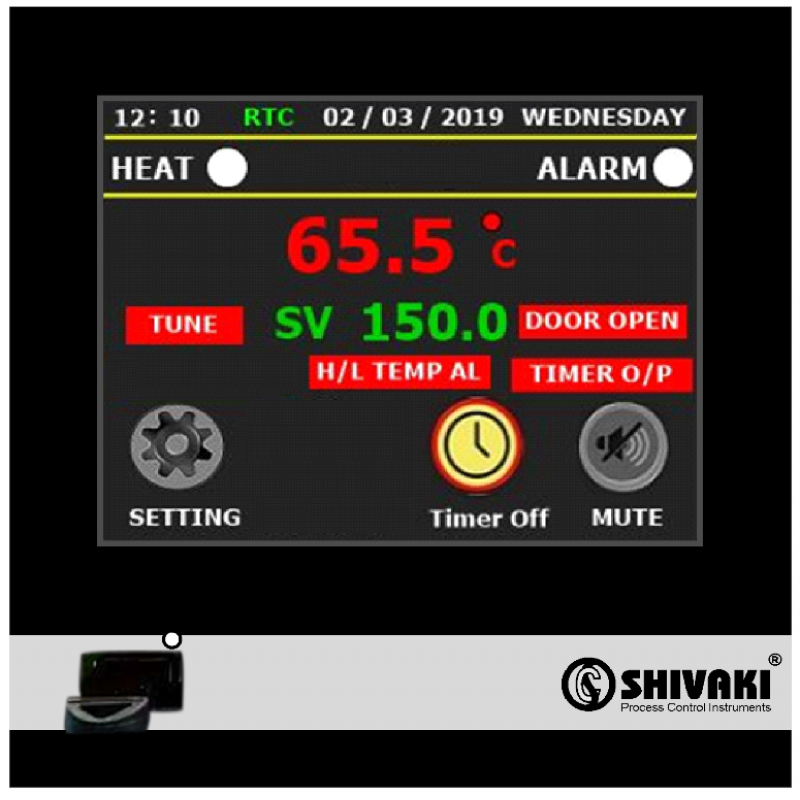

Heating Touch Screen Controller :

SPECIFICATION :

O) μmicrocontroller based, Touch screen Graphic display

O) Real time clock and date

O) Data logging time selection (Process parameter store in USB in CSV file formats)

O) DOOR OPEN message indication time selection (NO/NC contact selection )

O) Supply 24V DC

O) Input : PT100 (RTD), J (Fe/K),K (Cr/Al) TYPE

O) Output: 1. Heating Relay Contact or SSR

                 2. Timer Relay Contact or SSR (Optional)

                 3. Alarm Relay Contact or Buzzer (Optional)

O) Control action: Heating –PID/On-Off

O) Range: RTD -99.9 to 400.0°C,

                  J- TYPE 0 TO 750 °C,

                  K-TYPE 0 TO 1200 °C

O) Accuracy of 0.5% of full scale

O) Heating Temperature As per range adjustable in set mode.

O) Alarm setting -25.0 to 25.0 adjustable above and below set value.

O) Ct 1 to 60 seconds Relay output adjustable

O) Auto tuning require for pb, It & dt value

O) OPEn display if Sensor break

O) Relay trip if sensor breaks or connection open

O) Calibration Error correction by front key switch (No preset setting)

O) Alarm output optional.

Overview / Features :

• Size: 96 X 96 MM
• Data Logging In Pen DriveSeparate File of EVENT Data Logging( HI/Low Temp., Water Cut. Alm, Etc.
