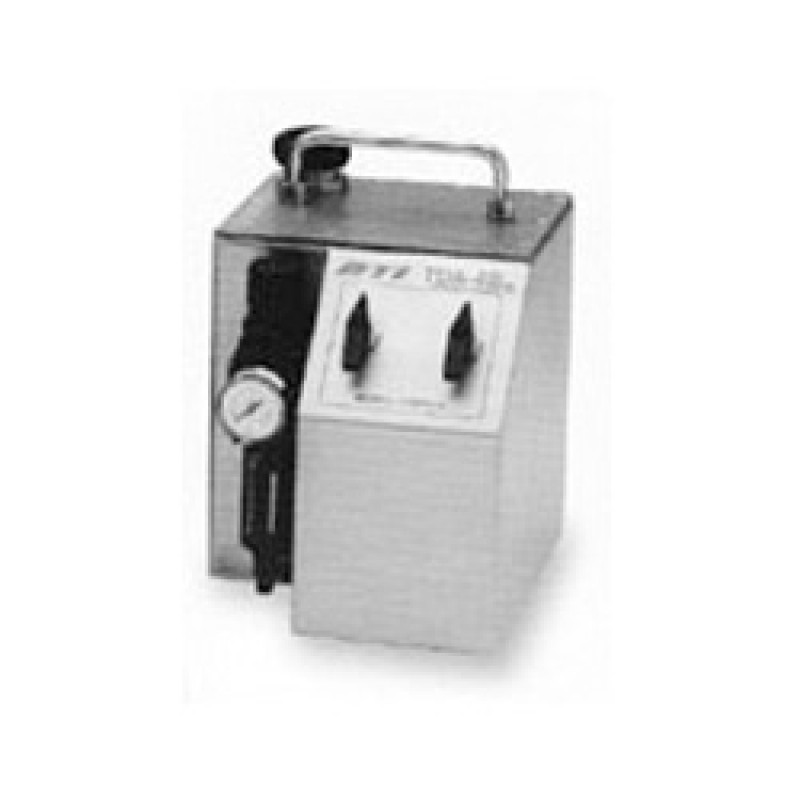

Aerosol Generator

Specification:-

• Size: 11" (L) x 11" (W) x 10" (H) 11" (L) x 8" (W) x 10" (H)
• Weight: 16lbs (7.3kg) 12lbs(5.5kg)
• Aerosol output: 50 – 8,100 CFM 50 – 4,050 CFM
• Concentration: 100 UG/L@*: 810 CFM 100 UG/L@*: 405 CFM 10 UG/L@*: 8,100 CFM 10 UG/L@*: 4,050 CFM
• Generator type: 1 to 6 Laskin Nozzle 1 to 3 Laskin Nozzle
• Compressed air: min 2.65 CFM/nozzle @ 20 psig
• Aerosol type: Poly-dispersed (Cold)

If more than 20 psig is used, the output concentration will increase and conversely, if less than 20 psig is used, the output concentration will decrease.

Additional Information:

Item Code: ATI-TDA-4B-Lite
