Description Of Clean Room Monitors:

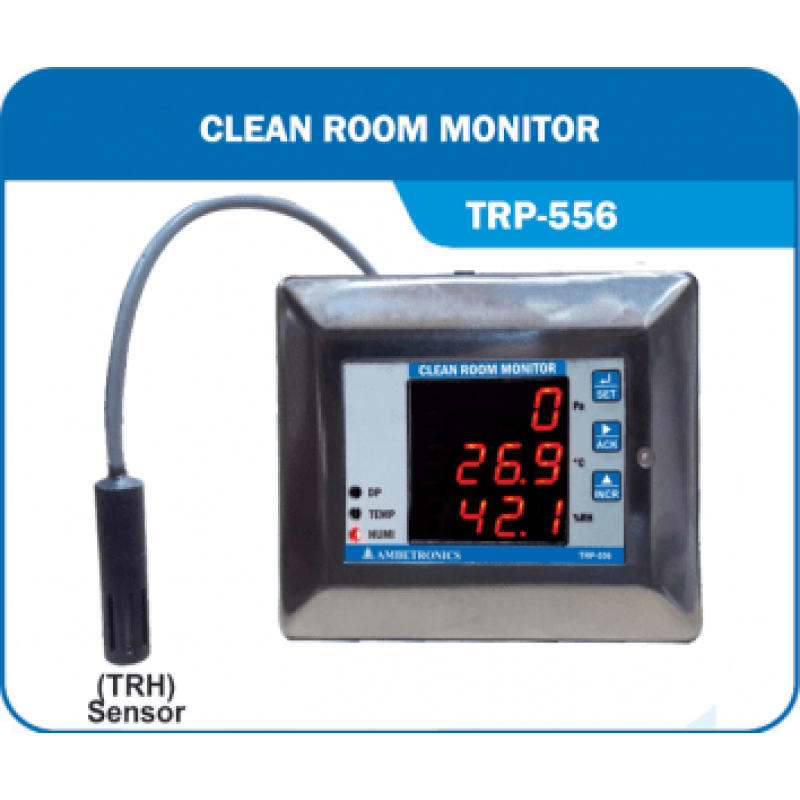

The Clean Room Monitor TRP-556 is the latest upgraded, flush mounted monitoring equipment with remote TRH sensor, designed for continuous monitoring of Temperature & Humidity in clean rooms at research labs and cold storage warehouses in industries like Pharma manufacturing & packaging, Animal Housing, Hospitals & Meteorological industries.

Salient Features Of Clean Room Monitors :

• LED display Indication for Temperature, Humidity and Differential Pressure at a time.
• Remote Temperature and RH sensor connection facility.
• Independent Programmable Alarm for Temperature, Humidity and Differential Pressure.
• In built Buzzer for Alarm set points with Acknowledgment facility.
• Software calibration facility.
• Password protected programming.
• Isolated RS-485 communication with Modbus RTU Protocol.

Technical Specifications Of Clean Room Monitors:

• Sensors : Remote Humidity and Temperature Sensor, Built in differential pressure sensor with Brass Hose Nipples (Chrome Plated) for +ve and -ve Pressure connection provided on SS front plate.
• Differential Pressure Indication : Upper 4 digit Seven segments 0.4” RED LED display
• Temperature Indication : Middle 4 digit Seven segments 0.4” RED LED display
• Humidity Indication : Lower 4 digit Seven segments 0.4” RED LED display
• Status indication : 3 LEDs for alarms; Integrated Buzzer for process violation of alarm limits any of the 3 parameters.
• Temperature Range : -30.0 °C to 50.0 °C
• Humidity Range : 0% to 100 % RH
• Differential Pressure Range : -500 to 500 pascal
• Display resolution Range : 0.1 for Temperature and RH; 1 for Differential Pressure
• Temperature – Accuracy : ± 0.5% of FS
• Humidity – Accuracy : ± 1.8 % of FS
• Differential Pressure – Accuracy : ± 0.5 % of FS
• Communication : Isolated RS-485 communication with Modbus RTU Protocol
• Programmable parameter : Baud rate, Parity, Data bits, Stop bits.
• No. of salve ID : 1-250
• Set point : Programmable as per input Selection.
• Programming of parameters : 3 Nos. push button front keys (with password protection)
• Alarm logic : High or Low, user programmable
• Operating Ambient Temp. : 0 to 50°C
• Humidity : Below 90% RH, Non condensing.
• Supply voltage : 24VDC ± 10%
• Power consumption : Less than 1.2 watt at 24VDC
• Flush mounting plate : SS-304
• Front plate size : 110 mm(W) x90 mm(H)
• Back enclosure : 76 mm (W) x70mm(H) x45mm(D); MS with powder coating.
• Mounting : Modular wall mounting with Stainless Steel Front.

Applications Of Clean Room Monitors:

• Clean room application in Pharmaceutical
• Pharma Environments monitoring applications.
• HVAC (Heating, ventilation, Air conditioning, Cooling).
• Animal house clean room
