Description Of Clean Room Differential Pressure Monitor:

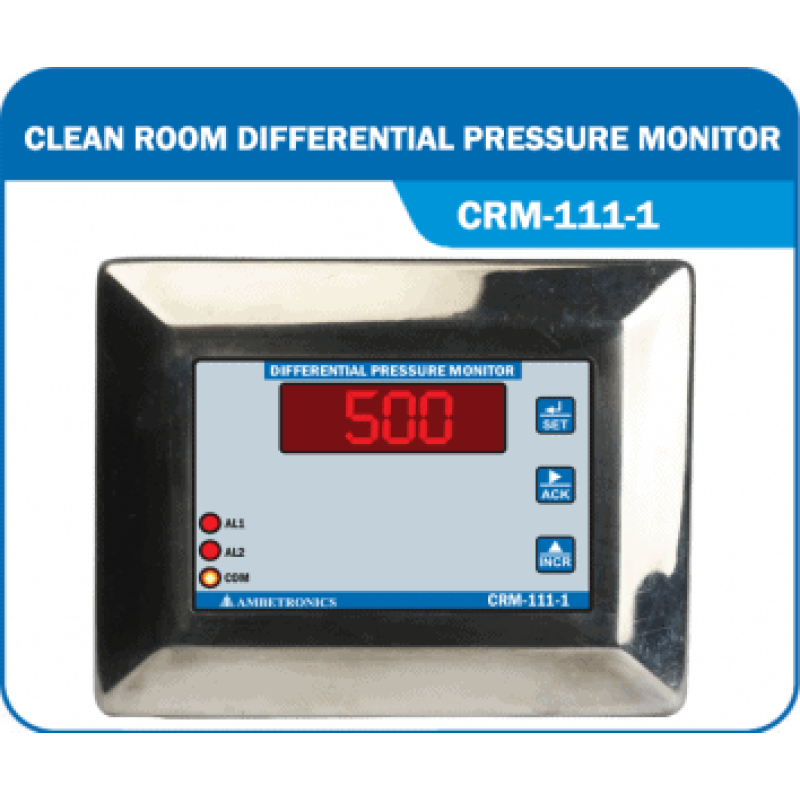

The Clean Room Differential Pressure Monitor CRM-111-1 is the latest upgraded, flush mounted monitoring equipment designed for continuous monitoring of Differential Pressure at research labs, cold storage warehouses in industries like Pharma manufacturing & packaging, Animal Housing, Hospital industries and can be integrated with HVAC systems.

Salient Features Of Clean Room Differential Pressure Monitor:

• LED display Indication for Differential Pressure indication
• User Programmable Alarm for Differential Pressure.
• In built Buzzer for Alarm set points with Acknowledgment facility.
• Software calibration facility.
• Password protected programming.
• Isolated RS-485 communication with Modbus RTU Protocol.

Technical Specifications Of Clean Room Differential Pressure Monitor:

• Display : 4 digit Seven Segment 0.4” Red LED display for Differential Pressure Indication
• Status indication : 2 LEDs for Alarms; Integrated Buzzer for process violation of Alarm limits.
• Sensors : Integrated Differential Pressure Sensor;
• Range: (-100 to 100) mmWC, Resolution: 0.1
• Range: (-10 to 10) cmWC, Resolution: 0.1
• Range: (-7.5 to 7.5) mmHG, Resolution: 0.1
• Range: (-1000 to 1000) Pascal, Resolution: 1
• Range: (-10 to 10) Hectopascal, Resolution: 0.1
• NOTE : Other Differential Pressure Range/Unit, Available on request, contact to factory.
• Accuracy:- Differential Pressure : ± 1 % of FS
• Communication : Isolated RS-485 communication with Modbus RTU Protocol
• No. of salve ID : 1-250
• Programmable parameter : 9600 bps, Parity, Data bits, Stop bits
• Set point: 2Nos. AL1, AL2 User Programmable
• Programming of parameters : 3 Nos. push button front keys (with password protection)
• Alarm logic : High or Low, user programmable
• Operating Ambient Temp. : 0 to 50°C
• Humidity : Below 90% RH, Non condensing.
• Supply voltage : 24VDC ± 10%
• Power consumption : Less than 1.2 watt at 24VDC
• Flush mounting plate : SS-304
• Front plate size : 110 mm(W) x90 mm(H)
• Back enclosure : 76 mm (W) x70mm(H) x45mm(D); MS with powder coated
• Mounting : Modular wall mounting with Stainless Steel Front

Applications Of Clean Room Differential Pressure Monitor:

• Clean room application in Pharmaceutical
• Pharma Environments monitoring applications.
• HVAC (Heating, ventilation, Air conditioning, Cooling).
• Animal house clean room
