Sand Pouring Cylinder
Product Details:
Material | MS |
Brand | Rupson |
Capacity | 4" 6" 8" |
Cylinder Diameter | 4 - 8 Inch |
Calibrating Container Internal Depth | 150mm |
Calibrating Container Internal Diameter | 100mm |
Metal Tray Hole Size | 10cm |
Metal Tray Shape | Square |
Metal Tray Size | 30x30cm |

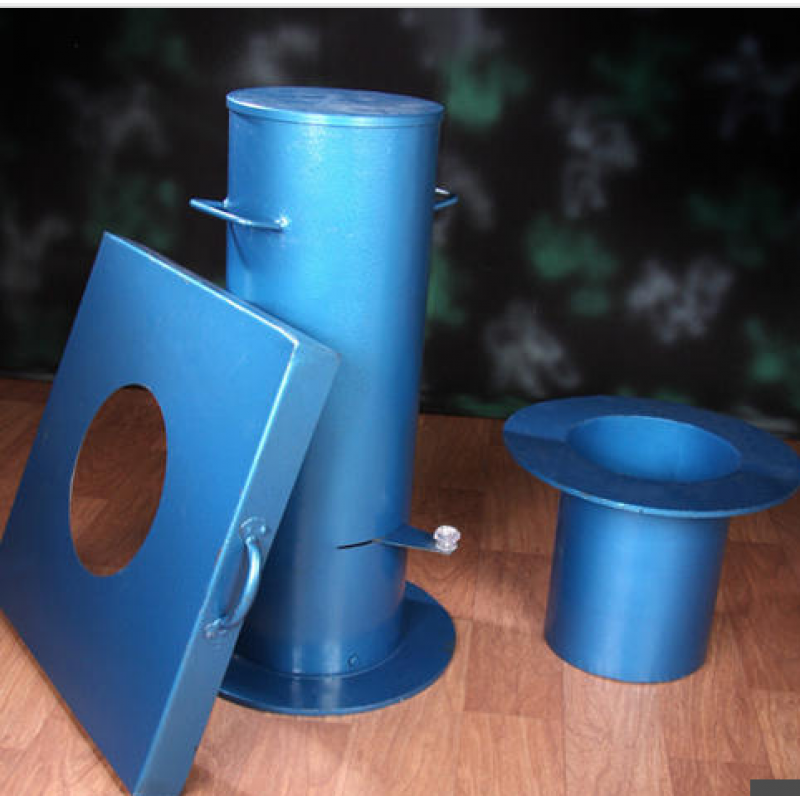

Sand replacement equipment (Sand Pouring method) Rs.1400/-
Conforming to specifications and tolerance in accordance to I.S. 2720 Part XXVIII consists of:
Small sand pouring cylinder 3 litres capacity mounted above a pouring cone and separated as a shutter hole.
Cylindrical calibrating container internal diam 100mm and internal depth 150mm fitted with a flange 5cm wide.
Metal tray 30cm square and 4cm deep with a 10cm hole in center.
Sand replacement equipment (Sand Pouring method) 6’’ size Rss.2400/-
Sand replacement equipment (Sand Pouring method) 8’’ size Rs.4200/-
