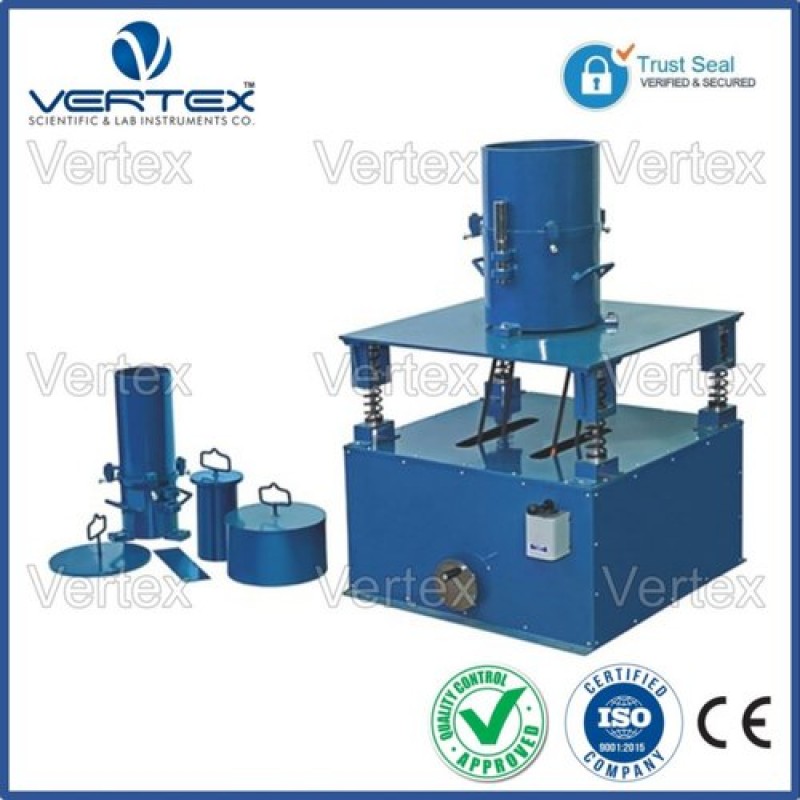

Relative Density Test

Product Details :

About Product:

• The equipment is used for the determination of the relative density of cohesionless free draining soils and meets the essential requirements.

Product Specification:

• The equipment consists one each of Vibratory table, with a cushioned steel vibrating decks about 75cm x 75cm. It has a frequency of approximately 3600 vibratory table, minute under a11.5kg load. Amplitude is variable in between0.65mm in step of 0.05 to 0.25mm, 0.25 to 0.45 mm and 0.45 to 0.65mm. Suitable for operations on415V, Three Phase supply. Cylindrical metal unit weight mould, 3000ml capacity. Guide sleeve with clamp assembly. Surcharges base plate for mould. Handle for surcharge base plate. Surcharge weight.

• The total weight together with surcharge base plate and handle is equipment to 140 kg. / cm2. For mould. Cylindrical metal unit weight mould 15000 ml.capacity. (Total weight together with the above mould surcharge weight is equivalent to 140 kg./ cm2) dial gauge 0.01mm x 50mm travel. Extension piece 25mmfor dial gauge.

Additional Information:

• Item Code: VSLIC-S185
• Minimum Order Quantity: 01 Set
• Standards: ASTM D4253 (Method 1A—1B)

Additional Information:

• Item Code: VSLIC-S185
• Delivery Time: 1 Week
