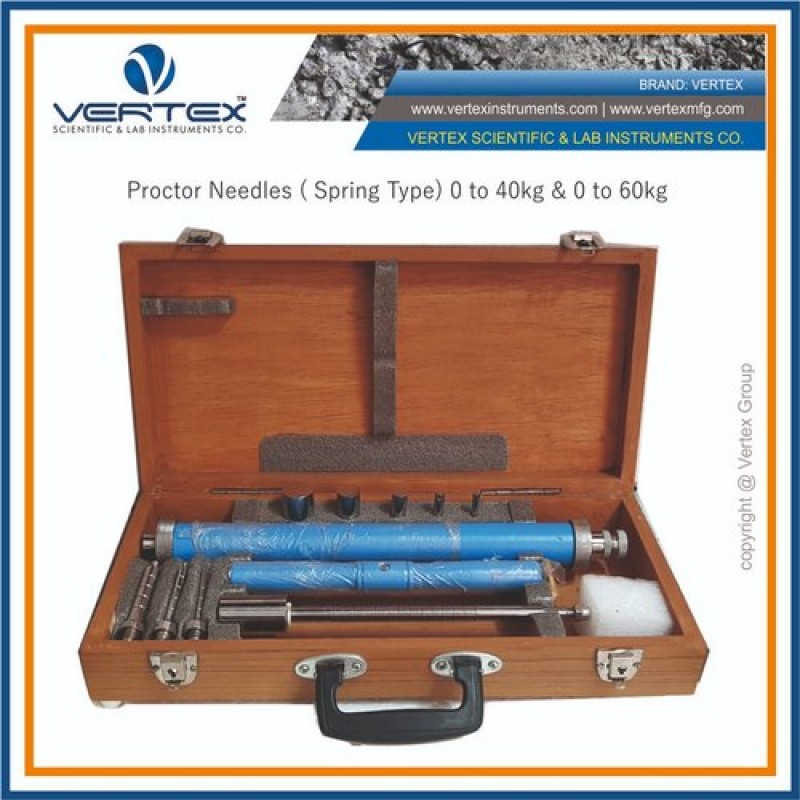

Proctor Needles (Spring Type)

Product Details :

About Product :

• Consists of a body housing a spring, a plunger calibrated to read 0-40 kg x 1 kg and a handle. It has a long stem & a short stem, both graduated at 12.5mm intervals to indicate the depth of penetration and for use with needles of larger & smaller areas respectively. Complete with needlepoint set comprising one each of 0.25, 0.5, 1, 1.5, 2, 3.5 & 6 sq. cm & Tommy pin. Supplied in a wooden carrying case.

Product Specification:

• The instrument consists of a needle attached to a spring-loaded plunger, the stem of which is calibrated to read 0 to 40 kg division. Long stem is graduated at every 12.5mm to read depth of penetration and for use with needles of larger areas. The small penetration stem is also graduation in 12.5mm division and is used with needles of smaller areas. Needle points one each of 0.25, 0.5, 1.0, 1.5, 2.0, 3.5 and6.0 sq cm. And one Tommy pin is supplied.


Additional Information:

• Item Code: VSLIC-3022
• Minimum Order Quantity: 01 Set

Additional Information:

• Item Code: VSLIC-3022
• Delivery Time: 1 Week
