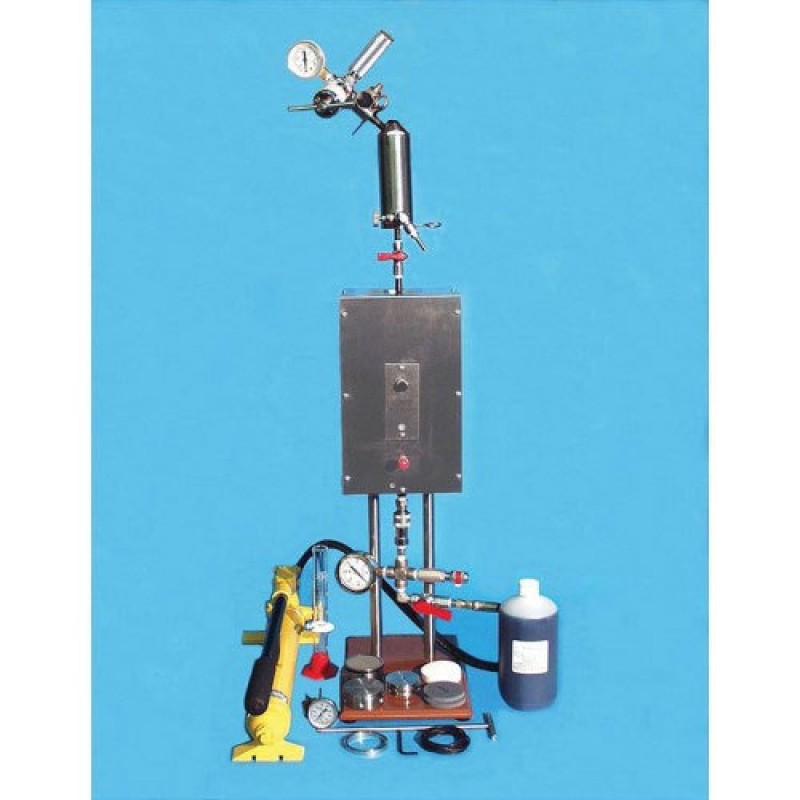

Permeability Tester

Product Details:

Height	500 mm
Diameter	100 mm
Test pressure	1~4000Pa
Max thickness	12 mm
Water Cell Diameter	10 mm
Pressure Gauge	0-7 kg/cm sq

Container ring of 100 mm diameter and 500mm high, held between a bottom plate and a water cell. The water cell of 10mm diameter brass cylinder and the top and bottom plates of brass or any other non-corroding metal. Each cell with collar is clamped in between a base plate and a top plate with the help of tension rods and nuts. The cell assembly is mounted on the stand. The top plate is provided with an inlet and air release vent and the base plate is provided with an outlet. Complete with a pressure chamber fitted with a pressure regulator and pressure gauge 0-7 kg/cm sq. indicating the test pressure with a single gauge without an air compressor and foot pump.
