Liquid Limit Device, Hand Operated with Counter

Product Details :

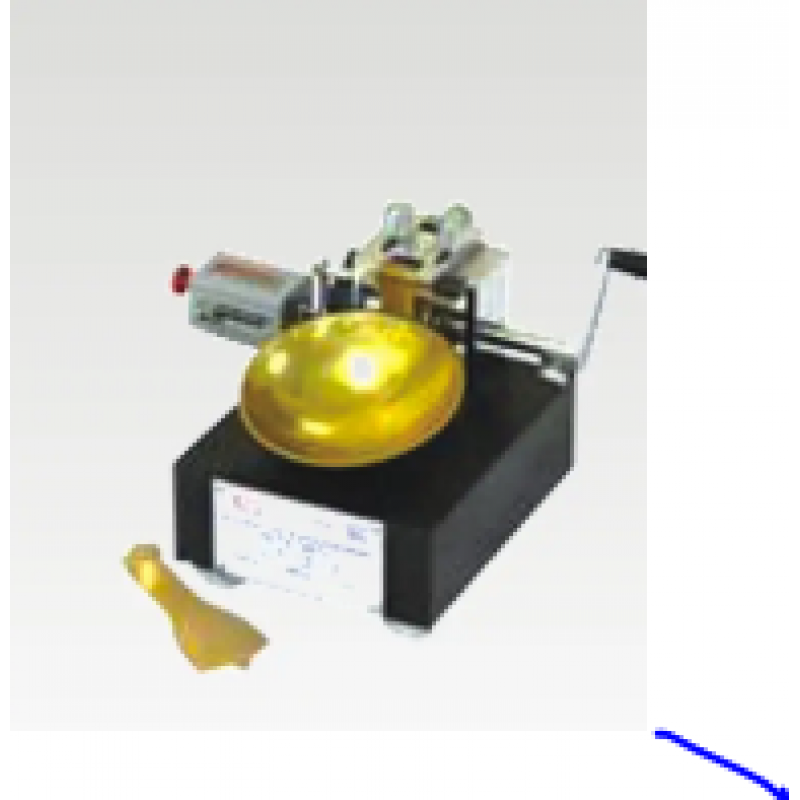

The apparatus consists of a brass cup, a crank and cam mechanism, mounted on a rubber base of a specified hardness. A brass pin having a knurled end for easy removal holds the brass cup. The height of fall of the cup can be adjusted by a horizontal lead screw. The device is fitted with a drop counter to automatically record number of drops of the cup.

Supplied complete with:

Grooving Tool Type ‘A’ and Gauging Block as per IS:9259 IS:2720 (Part-V).
