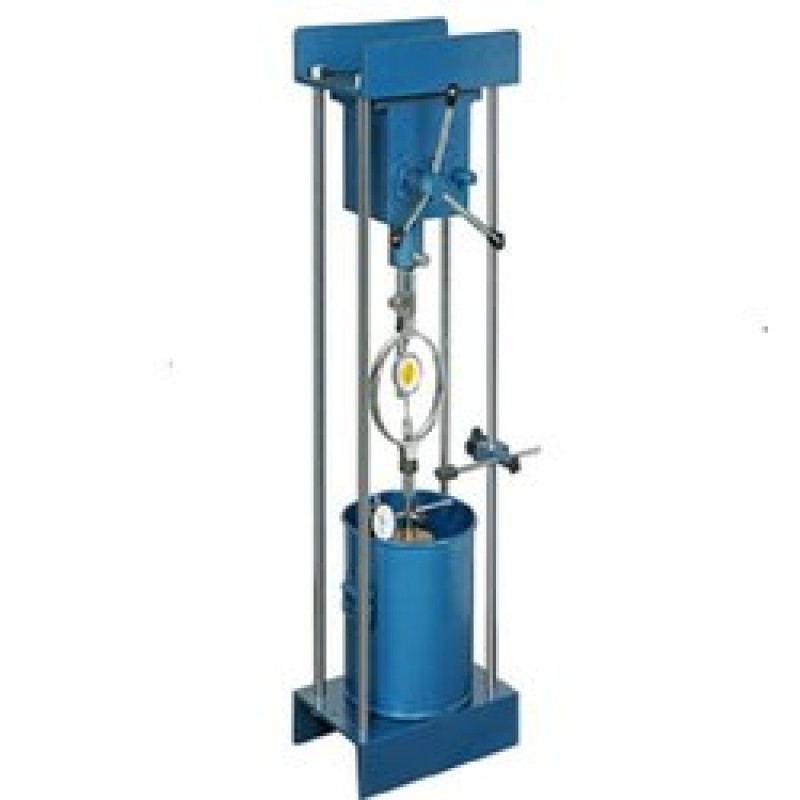

Hand Operated Swell Testing Apparatus

Product Details:

Our organization offers an impeccable range of Swell Testing Apparatus. The products we are offering are designed and manufactured in order to determine the swelling pressure developed by soil specimens, which is moulded to desired densities at known moisture content. Further, customers can avail our products as per their requirements.

Specification:

• One loading unit, hand operated 5 tons capacity with two rates of travel

• One high sensitivity proving ring 250 kg capacity with calibration chart and carrying case
• One dial gauge 0.01 mm x 25 mm
• One gun metal mould 1000 ml capacity (100 mm diameter x 127.3 mm high) with collar and base plate and a pair of porous stones 100 mm diameter x 12.7 mm thick
• One gun metal /brass perforated swell plate 100 mm diameter x 16 mm thick
• One spacer 100 mm diameter x 12.7 mm thick one load transfer bar and one steel ball
• One soaking tank 250 mm diameter x 210 mm high

Additional Information:

• Item Code: SWELLTESTINGAPPARATUS
• Delivery Time: with in 2-3 week or depends upon distance
• Packaging Details: STANDARD PACKING
