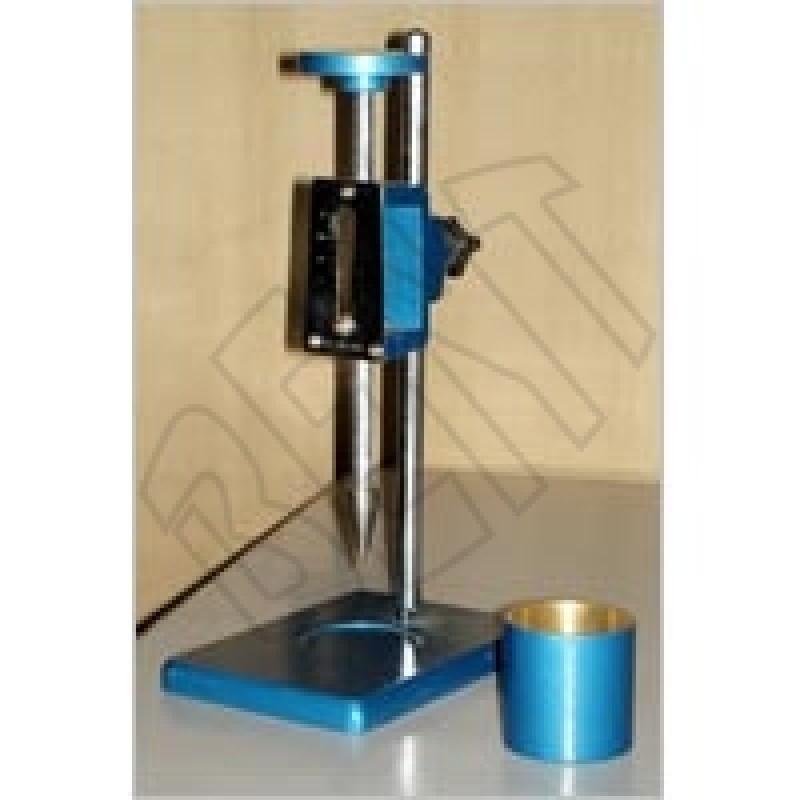

Cone Penetrometer
Product Details:

Penetrometer

590 mm

Weight

100 gm

Power Source

Electric

Material

Steel

Finish

Polished

The Cone Penetrometer is designed and fabricated as per IS: 2720 (Part V). The Cone Penetrometer is used to determine the liquid limit of soil which has low plasticity index. The moisture percentage contents determined when cone with half angle of 30° under a total sliding weight of 148gm penetrates 25mm in soil sample gives the liquid limit. The Cone Penetrometer is supplied complete with standard cup of dimension 50mm dia x 50mm depth. This Cone Penetrometer is hand operated and scale type.
