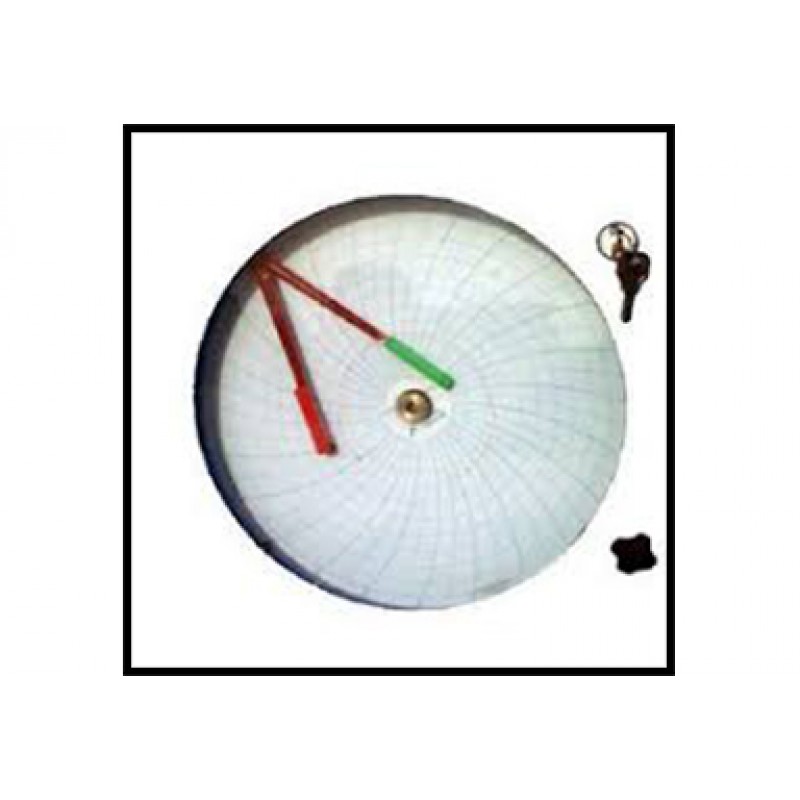

Circular Chart Recorder
Product Details :
YANTRIKA Circular Chart Pressure /Temperature Recorders are technically proven instruments for the performance, ruggedness, durability & accuracy and are used for recording pressure / temperature variations in any process industry.
Working Principle :
Pressure: Rise in pressure deflects the sensing element which is connected by mechanical linkage to the Pen arm, which records the Pressure on suitably calibrated chart. This chart will be rotated anti-clockwise with the help of a chart drive at a constant speed. This helps us to find out pressure variations at any point of the time period.
Temperature: Rise in temperature causes mercury in the capillary to expand which is connected by mechanical linkage to the Pen arm, which records the temperature on a suitably calibrated chart. This chart will be rotated anti-clockwise with the help of a chart drive at a constant speed. This helps us to find out temperature variations at any point of the time period.
Specification:
| Pressure Recorder | Temperature Recorder | |||
| Chart size | 250 mm / 150 mm Circular | Chart size | 250 mm / 150 mm Circular | |
| Accuracy | ± 1% full Scale | Accuracy | ± 1% full Scale | |
| Ranges | 0-700 bar | Mounting | Wall or Panel | |
| Unit | bar, kg/cm2, psi, mmHg, mtWC | Process Connection | 3/8” BSP (M) Standard | |
| Sensing Element | AISI 316 | Case | Sheet Steel / Aluminum | |
| Mounting | Wall or Panel | Window | Toughened Glass | |
| Process Connection | 3/8 BSP (M) Standard | Chart Drive | Mechanical / Electrical / Quartz | |
| Case | Sheet Steel / Aluminum | Rotation | Mechanical–24 hrs.(std.) | |
| Window | Toughened Glass | No. of Pens | Single or Double pen | |
| Chart Drive | Mechanical / Electrical / Quartz | Type | Disposable | |
| Rotation | Mechanical–24 hrs.(std.) | Sensing Element | Chrome Molybdenum dia. 14.3mm, O.D. (stand), Bulb Stainless Steel 4.8mm O.D (optional) PVC covered (optional) | |
| No. of Pens | Single or Double pen | |||
| Type | Disposable | |||
| Contacts | Minimum or Maximum (single) | Limit of over Temp. | 20% of span | |
