| Models | PMT-75 | PMT-100 | |
| Grinding Diameter (Min.-Max.) | mm | 2 - 85 | 2 - 100 |
| Max. length in through feed grinding | mm | 220 | 220 |
| Grinding wheel size (d x w x b) | mm | 350 x 75 x 127 | 350 x 100 x 127 |
| Regulating wheel size (d x w x b) | mm | 230 x 75 x 76.2 | 230 x 100 x 76.2 |
| Regulating wheel speed 3 step (infinitely variable) | rpm | 20 – 40 - 60 | 20 - 200 |
| Swivel of Regulating Wheel head in : | deg | 1 - 5 | 1 - 5 |
| Horizontal plane for taper correction / taper grinding | deg | - | ± 1.5 |
| Vertical plane for Thru-feed Grinding | deg | - | ± 5 |
| Grinding and Regulating Wheel dresser | Manual / Hydraulic | Hydraulic | |
| Swivel of Grinding and Regulating wheel dresser | deg | ± 5 | ± 5 |
| Grinding Wheel motor power | hp | 5 | 7.5 |
| Regulating wheel motor power | hp | 1 | 1 |

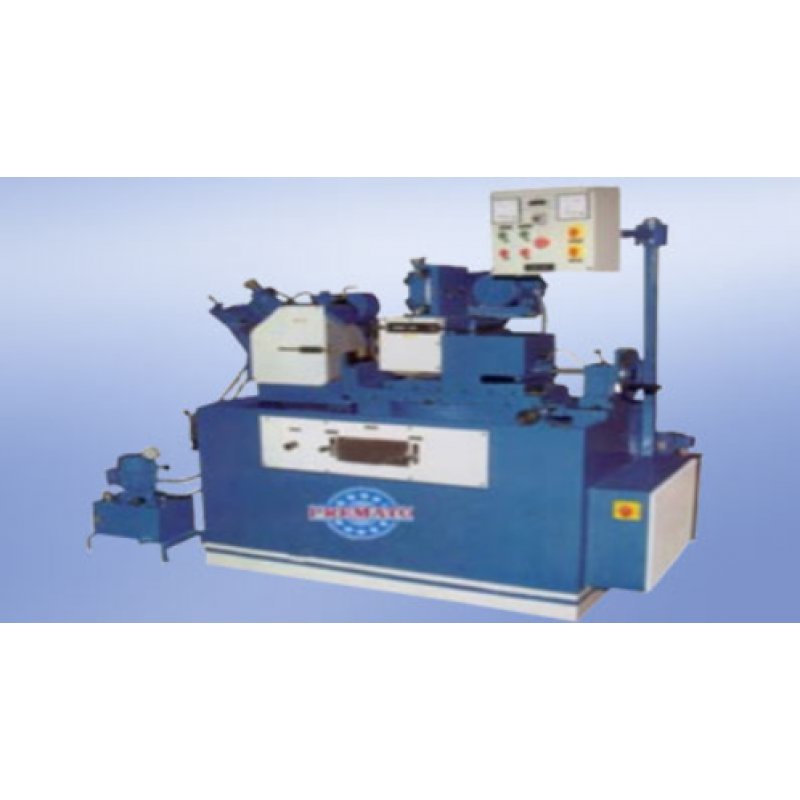

Center Less Grinding Machine
- Views: 364
-
Precision Machine Tool - Vendor Type: Manufacturer
- Product Code: PMT0000015
- Availability: In Stock
