Vicat Needle Apparatus With Dashpot

Model No.: SMEW-0122

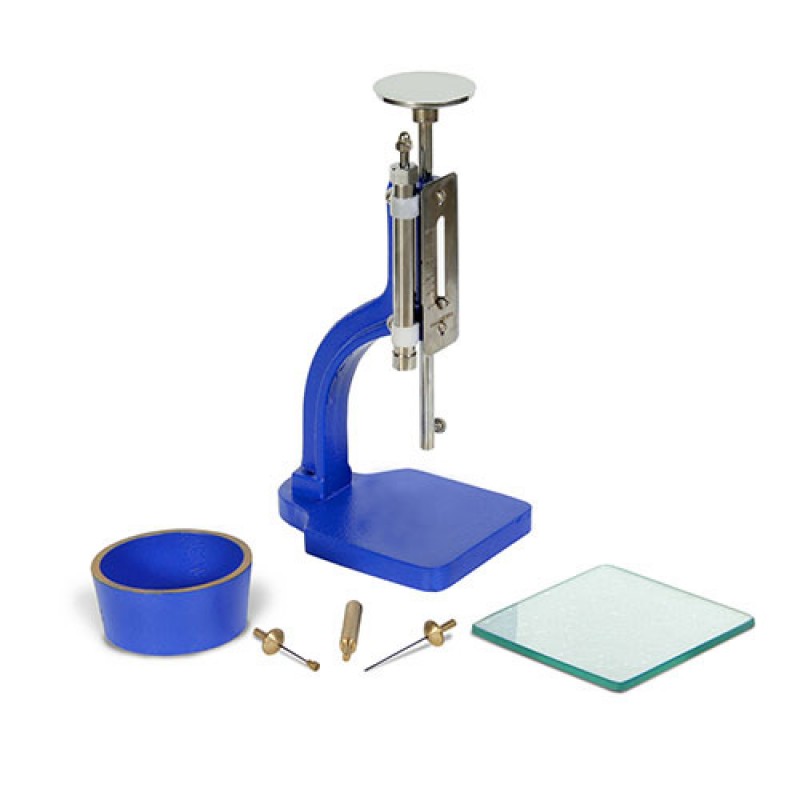

The apparatus consist of metallic frame bearing a freely movable and with a cap at top, one vicat mould and glass base plate and one set of needles one each initial needles, final needle and consistency plunger. It comes with a dashpot which facilities gentle lowering of the needle.

Accessories :

• Mild steel base plate 5 inchesX 5 inches.
• Fulcrum mould, brass, 80 mm i.d base dia x 70 mm i.d top dia, 40mm height

Note :

• Normally set of needle and mould which meet is requirements as per I.S 5513 are supplied. While ordering please specify the specification code of the instrument required.
• Vicat needle apparatus for determining consistency of hydraulic cement. Gypsum plaster, lime etc. As per ASTM C 187-58 C 472-62 C 110-58, IS 2542 (part -1) can also be supplied.
