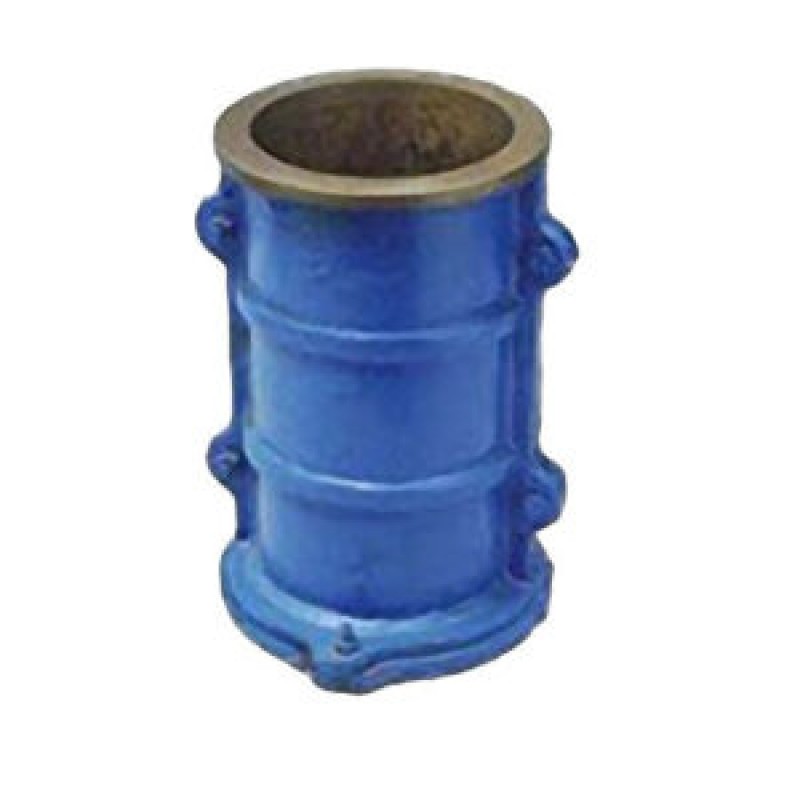

Cylindrical Mould

Product Details:

Standard: IS:10086.
Model :
The Cylindrical Mould is used for testing concrete cylinders for compressive strength tests.

SPECIFICATION

The mould is split vertically into two parts. The mean internal diameter is within + 0.2 mm and height is within + 1 mm. The ends are machined to +0.05. The base plate and top plate are machined flat to + 0.03 mm.

• Cast Iron, Split lengthwise 150 mm x 300 mm high with ISI certification mark
• Cast Iron, Split lengthwise 100 mm dia x 200 mm high.
• Cast Iron, Split lengthwise 100 mm dia x 100 mm high.
• Cast Iron, Split lengthwise 150 mm dia x 150 mm high.
• Cast Iron, Split lengthwise 300 mm dia x 300 mm high.
