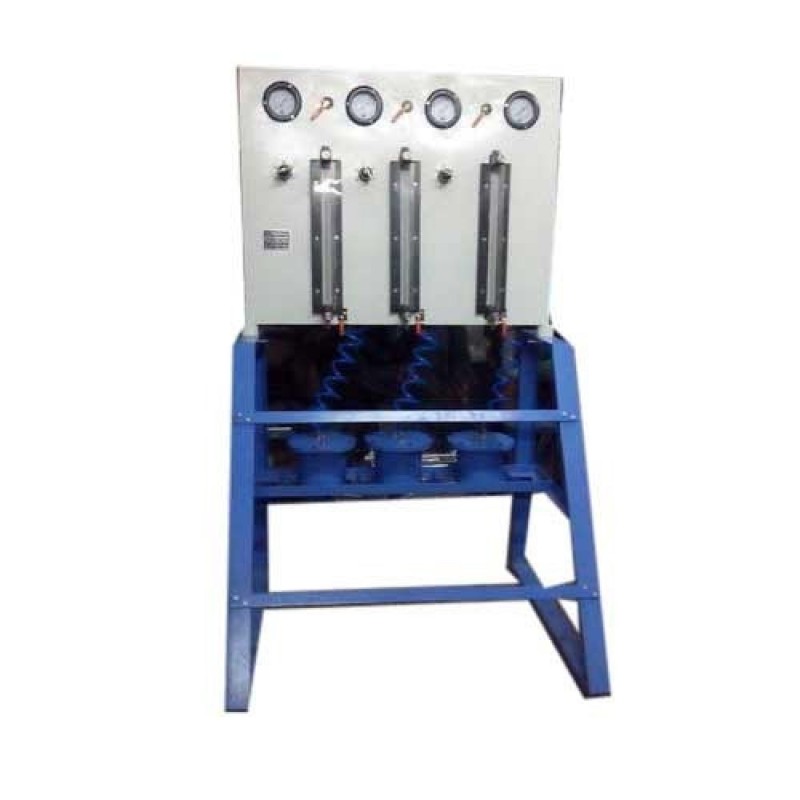

Concrete Permeability Test Apparatus
Product Details:
The Concrete Permeability Test Apparatus is determined on cement, mortar and concrete specimens, either casted in the laboratory or obtained by cutting out cores from existing structures. Each cell of concrete permeability test apparatus is made of steel and provided with a top plate and funnel at the bottom having gasket seals held in position through bolts and nuts. Each test stall has its own control system, operating pressure gauges and valves. The multi-unit Permeameter are so designed that all tests can be performed at the same time using either the same head or varying head pressure as each test stall is provided with its own pressure regulator and control. The control instruments are mounted on a sturdy welded structural stand. All multi – units are provided with end pressure gauges. Each concrete permeability test apparatus is provided with chamber pressure gauges 0-20 kg/cm² and test pressure gauge of 0-15kg/cm². Pressures are applied using any available pressure line at the site or a 150PSI Electric Air Compressor. The Air Compressor is Suitable for operation on 220V, 1Ph, 50Hz AC Supply.
Specification :

Cat No. & Name	Number of Cells	Capacity of Compressor	Motor of Compressor	Elec. Supply
AT-186-1: Concrete Permeability	Single Cell	150PSI	½ HP 1440RPM	220V, Single Phase, 50Hz AC Supply
AT-186-2: Concrete Permeability	Three Cells	150PSI	½ HP 1440RPM	220V, Single Phase, 50Hz AC Supply
