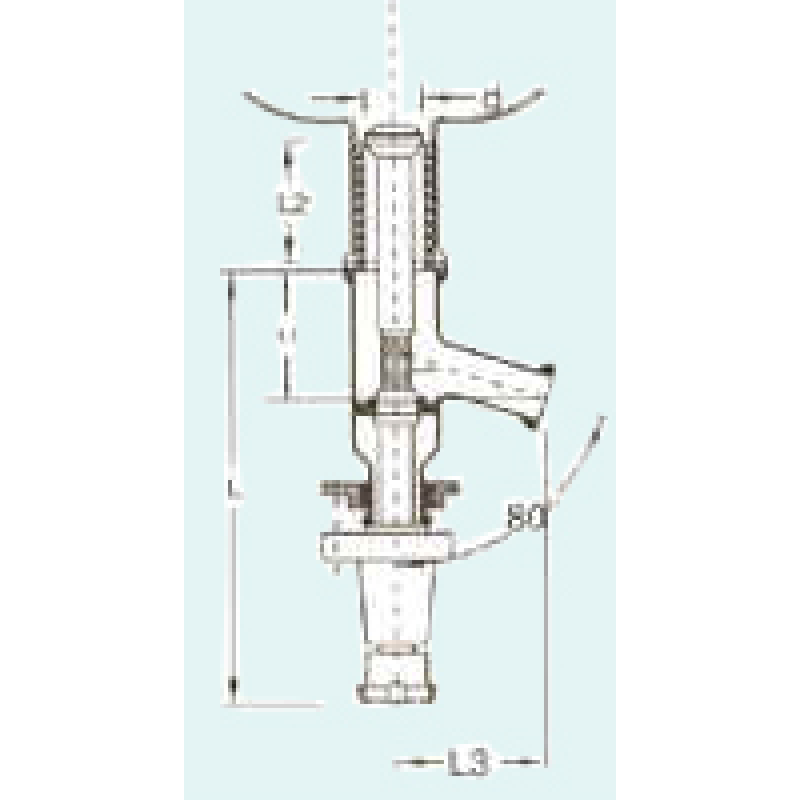

Bottom Outlet Valves
Product Details :
These valves are used with integral valve seat in the bottom of the vessel. The position of valve seat is such that it reduces the accumulation of solids in the vessel or drain neck.
| Catalog Reference | DN | DN1 | d | L | L1 | L2 | L3 | L4 |
| BAS 40 | 40 | 25 | 30 | 270 | 105 | 110 | 125 | 120 |
| BAS 40 | 40 | 25 | 30 | 270 | 105 | 155 | 175 | 120 |
FLUSH BOTTOM VALVES WITH SEAT
Unlike BAS and BAL bottom outlet valves shown above, these valves can be fitted on conventional type of bottom necks without any integral seat.
| Catalog Reference | DN | DN1 | L | L1 | L2 | L3 |
| RFC 40 | 40 | 25 | 240 | 72 | 100 | 100 |
ADJUSTABLE OVERFLOW VALVES
These valves provide a means of externally adjusting the level inside a vessel. They are ideal for use with liquid separators.
| Catalog Reference | DN | DN1 | DN2 | d | L | L1 | L2 | L3 | H | 1/h1 |
| OF 25 | 25 | 80 | 15 | 25 | 100 | 165 | 50 | 255 | 340 | 600 |
| OF 40 | 40 | 80 | 15 | 25 | 150 | 265 | 90 | 435 | 470 | 900 |
| OF 50 | 50 | 100 | 15 | 35 | 150 | 270 | 90 | 435 | 470 | 1600 |
