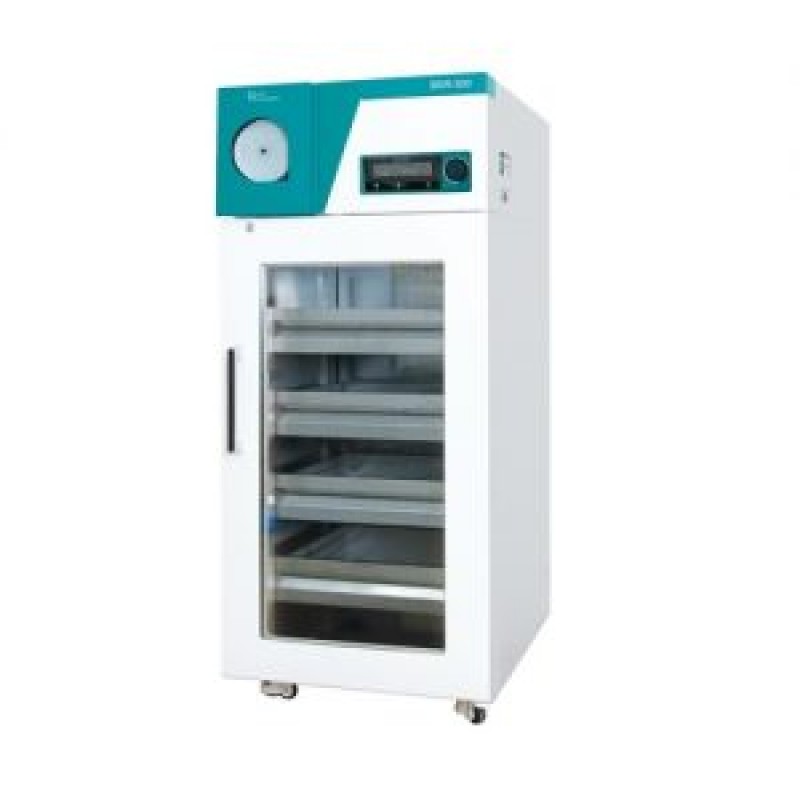

Blood Bank Refrigerators
Product Features:
- Ideal for safe storage of precious blood samples
- Precise temperature uniformity with various safety functions to meet the strict requirements of the International medical standards (ISO13485 / DIN 58371)
Performance
- Fully insulated chamber ensuring minimal chamber’s temperature fluctuation
- High thermal efficiency evaporation system, made of low corrosive materials
- Auto-defrost system for automatic frost removal and manual defrost system for immediate frost removal
Convenience
- Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons
- Easy temperature unit conversion between ℃ and ℉
- Air-tight door seal and lockable door latch enhances tightness to door closure
- High-quality 304 grade stainless steel interior
- Easy to store samples with smooth full-extension sliding drawers
- Precise documentation is available by the provided chart type recorder
- Clear observation of stored samples
- Tempered glass door with built in heating wire
- Energy efficiency, long life span LED lighting
Safety
- Dual temperature controllers for safe blood storage
- If one controller fails to adjust temperature, then the other automatically activates to counteract the failure
- Battery backup for emergency caused by power failures
- Built in auto-dialing remote alarm to alert abnormal temperature changes or power failures
- High/low temperature protection, over current protection
- Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss
- Keypad lock function, Built in door lock with a key
Product Description :
Model | BSR-3001 | BSR-6501 | |
Chamber volume (L / cu ft) | 303 / 10.7 | 614 / 21.7 | |
Temperature range(℃ / ℉) | 4/39.2 | ||
Refrigerator (Hp) | 1/6 | 1/3 | |
No. of drawer shelf, slide (standard / max.) | 4/ 4 | 6/ 6 | |
Max. load per shelf(kg / Ibs) | 26/57.3 | 30/66.1 | |
Material | Interior | Stainless steel #304 | |
Exterior | Steel,1 mm, powder coating | ||
Insulation | 60mm, Polyurethane foam | ||
Dimension (W×D×H) | Interior (mm / inch) | 550x550x1000/ 21.7×21.7×39.4 | 700x640x1370/ 27.6×25.2×53.9 |
Exterior(mm / inch) | 670x770x1515/ 26.4×30.3×59.6 | 820x860x1885/ 32.3×33.9×74.2 | |
Net weight(kg / Ibs) | 130/ 286.6 | 210/ 463 | |
Electrical requirements (230V) | 50/60Hz, 2.8A | 50Hz,3.8A | |
Cat. No. | AAHE41051K | AAHE41121K |
