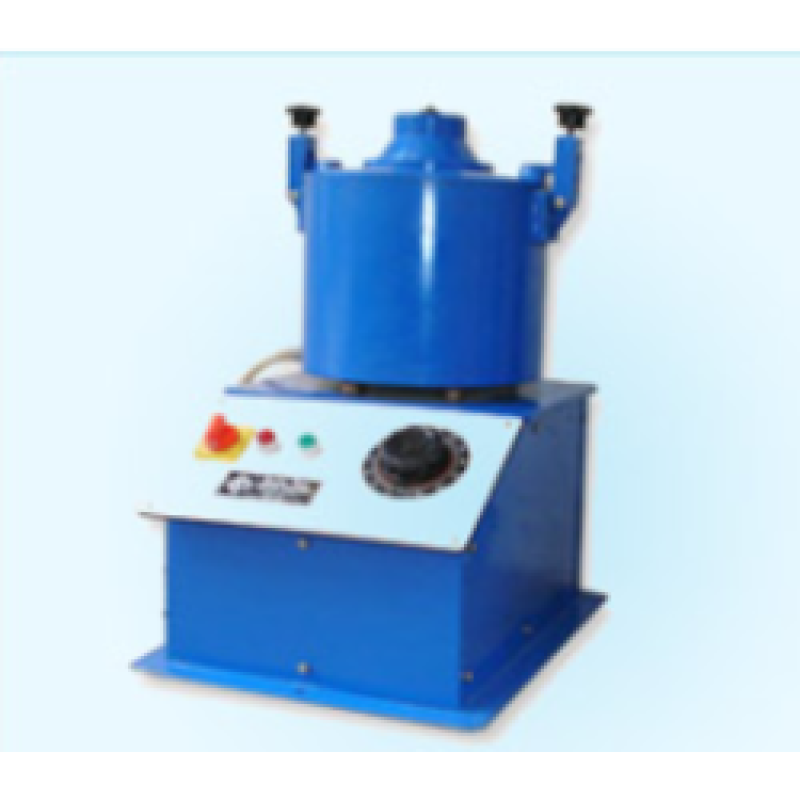

Bitumen Extraction Test Apparatus

Bitumen Extraction Test Apparatus

Specification :

For determining bitumen percentage in Bituminous paving mixtures. It has a removable, precision machined, aluminium rotor bowl, mounted on a vertical shaft. A filter paper disc is pressed in-between the rotor bowl and cover plate by tightening a knurled nut. The bowl assembly is enclosed in a housing operating model; the rotor bowl is coupled to a motor. The solvent may be introduced during test through a cup on the housing cover. The apparatus is supplied complete with a Pack (50 Circles) of Filter Paper.


Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply.


NameDescription
Bitumen Extraction Test ApparatusCentrifuge type Bitumen extraction apparatus 1500gm capacity Manually Operated with pack of Filter Paper (50 Circles).
Bitumen Extraction Test ApparatusCentrifuge type Bitumen extraction apparatus 3000gm capacity. Manually Operated with pack of Filter Paper (50 Circles).
Bitumen Extraction Test ApparatusCentrifuge type Bitumen extraction apparatus 1500gm capacity Electrically Operated having Dimmerstat for controlling speed from 2400 to 3600rpm with pack of Filter Paper (50 Circles).
Bitumen Extraction Test ApparatusBitumen Extraction Test Apparatus
Centrifuge type Bitumen extraction apparatus 3000gm capacity Electrically Operated having Dimmerstat for controlling speed from 2400 to 3600rpm with pack of Filter Paper (50 Circles).
