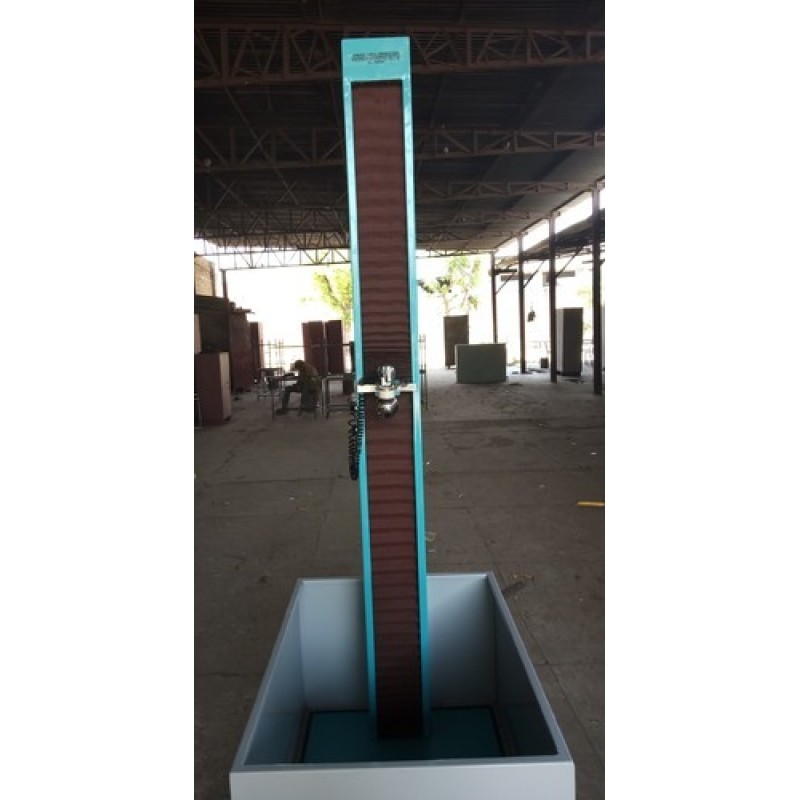

Ball Drop Tester

Product Details :

Ball Drop Tester /Drop Ball Tester

Product Introduction:

The Machine manufactured by Daksha Shree Production .The Machine As pre IEC: 60598-1, IEC: 60950, ASTMD-1709, ASTM -F3007 &3006 ISO 7765-1,BS-2782,UNI -8044 ,IS-2508,IS-1146.

The ball drop test apparatus is mainly used to test plastic, ceramics, glass fibre and other materials. Choose the corresponding steel ball according to related standard requirements, then adjust it to be a certain height, and then make it fall freely to impact the test sample. After that, judge the quality of the test sample according to the degrees of the damages.

Technical Specification

• Drop Height:-1800 mm With Digital Height controlled
• Height adjust control method:- high torque motor  .
• Ball Weight holding capacity:-5 – 5000 Grams
• Ball Drop Control Method: Controlled by magnetic.
• Power Supply:-220 AC, 50 Hz,6 Amp.
• Dimensions:- 24 inch X30 inch X 92 inch
• Weight:-78 kg
• ASTM D:1709: - 2 x 5 g, 8 x 15 g, 8 x 30 g, 8 x 60 g method A
• ASTM D: 1709:- 2 x 15 g, 8 x 45 g, 8 x 90 g method B
• NF T:54 -109: - 2 x 5 g, 24 x 15 g method A dia. 38.1 mm; 32 g
• NF T: 54- 109:- 2 x 15 g, 24 x 40 g meted B dia. 50.8 mm; 320 g
• BSI 2782  :-1 x 1 g, 2 x 2 g; 1 X 5 g, 1 X 10 g, 1 X 15 g, 1 X 20 g,1 X 40 g method 352 D 20 g
• BSI 2782: - 1 to 550 g method 352 D 60 g
