Automatic nitrogen blowing concentrator-VortexVap A96
Product Description :

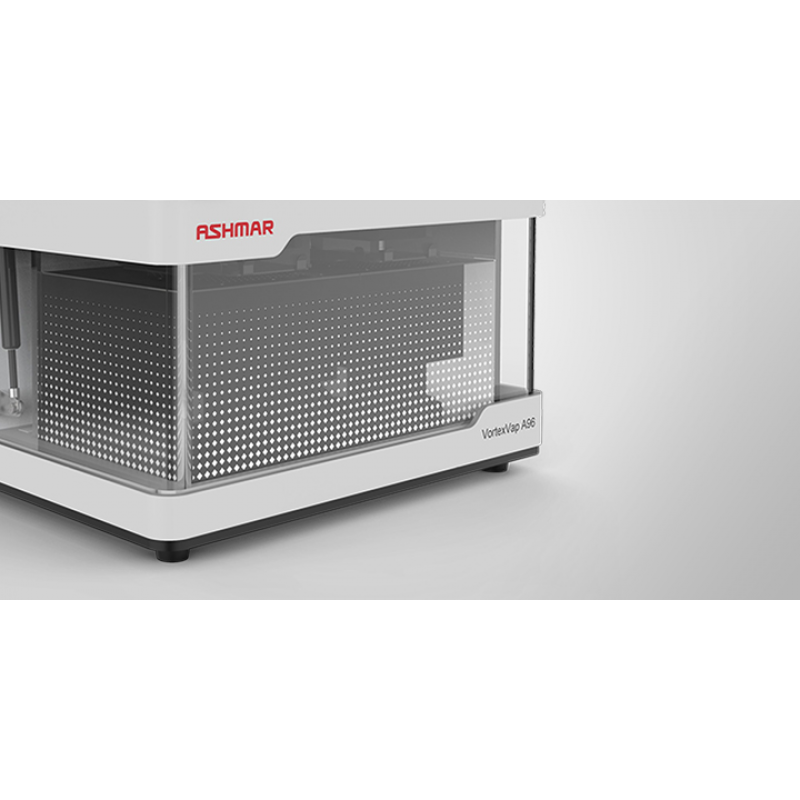

Automatic nitrogen blowing concentrator-VortexVap A96
The VortexVap A96 concentrates primarily on small volume solution samples. Through the 96-well plate as a carrier, 192 samples can be processed at the same time. The uniquely designed nitrogen blowing plate composed of 96 nitrogen blowing needles ensures the consistency of the air flow rate of each nitrogen blowing needle outlet. One-key operation can be achieved through the color control screen that comes with the instrument. VortexVap A96 has the characteristics of fast concentration, good parallelism, high degree of automation, environmental protection and safety. It is an indispensable organic sample pretreatment equipment in laboratories.
Features
Design Features
- User-Oriented Design Features
- Transparent design of the work area enables visibility of the sample concentration process without interrupting viewing
- 7-inch touch screen, independent airflow control, visible concentration process, adjustable screen angle, automatic flow adjustment, booster device, plug-in air intake
Flexible configuration
- Optional shading accessories to protect samples from light
- Automatic flow control without manual adjustment
- Features plug-in air intakes and large color touchscreen controls
Product Specifications :
system host
| Gas source | Inert gas such as nitrogen is recommended |
| Required pressure at full load | 1.5Bar |
| Maximum allowable intake pressure | 8Bar |
| Heating system temperature range | Room temperature to 80°C, ±1°C |
| Heating time | <20min (from 20℃ to 50℃) |
| Flow automatic control adjustment time | 1S |
| touch screen | 7 inch (1024*600) color touch screen |
| maximum noise | 75dB |
other
| exhaust | Built-in exhaust fan and exhaust interface, with 3m long exhaust pipe |
| operating temperature | 18°C~32°C |
| Storage temperature | 0~60°C |
| humidity | 20% ~ 90%RH (non-condensing) |
| Maximum power consumption | 1000VA |
| weight | 33kg |
| Dimensions (WxDxH) | 430x440x300 (550mm height with lid open) |
| Certification | CE Mark |
