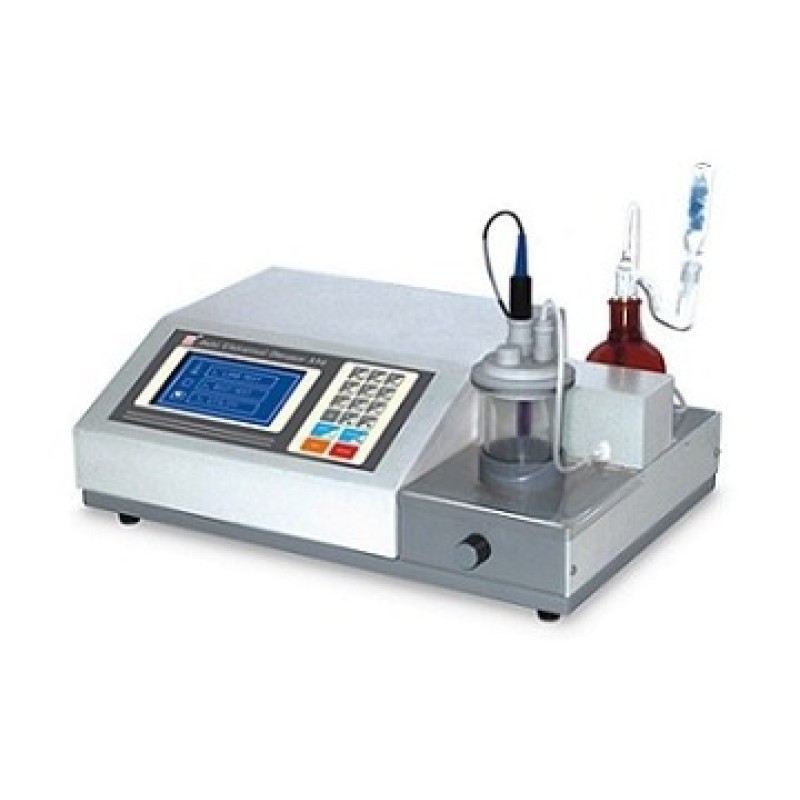

Auto Universal Titrator with Graphic LCD
Product Details:
| Minimum Order Quantity | 1 Piece |
| Brand | Systronics |
| Dimension | H430xW250xL120 mm |
| Weight | 4 Kg |
| Power | 230V +/-10%, 50 Hz |
| Display | Graphic LCD 240x128 Display & Soft touch keyboard with 16 keys |
| Temperature | 0 to 100 Deg C |
| Printer Port | Epson Compatible 80 column D.M. Printer |
| Stirrer | Inbuilt Magnetic Stirrer with adjustable Speed |
| Moisture Content Calculation | 0 to 100% Display with % well as mg |
| Solution Dispensing Mechanism | Highly accurate Sipper pump with auto calibration |
| End Point Alarm | After Titration is over it gives audible beep |
| Hold Time For End Point | 10 to 50 Second hold time, when end point is achieved, unit waits for stable end point |
Salient Features:
- Burette-less accurate dispensing system
- Internal and external calibration
- Save Programs / Test
- Data Memory
- Magnetic stirrer with adjustable speed
- Large Graphic LCD to shows titration Curves
- Function : Potentiometric / K.F. / pH / mV / Temp.
Accessories:
- Reservoirs bottle with air tight attachments
- Reaction vessel with Teflon based air tight cover
- Glass Electrode
- Reference Electrode
- Combined Electrode
- Dual Pt electrode for KF titration
- Temperature probe (Pt -100)
Optional Accessories:
- Gel field Combined Electrode
- Silver Electrode
- Dual Junction reference electrode
- P C link software
pH Calibration:
pH Calibration with 2, 3 & 5 points Standard Buffer or user selectable standard with Auto or Manual Temp. compensation
Display Range Range & Rresolution of Volume Dispenses:
0-99.9 ml with 0.001 ml resolution by using Statistic Analysis
Calibration For KF-Factor:
Inbuilt automatic KF factor calculation facilities, After Standardization one can use same factor for different Sample or can re-standardize the KF reagent
Potentiometric Titration:
derivative for Peak Point (pH / mV) determination
derivative for Volume (ml) determination
Measuring Range :
| Range | Resolution | Accuracy | |
| pH | 0.00 to 14.00 | 0.01 pH | +/-0.01 |
| mV | 0.00 to +/-1999 | 0.01 mV | +/-0.5 mv |
| Temp. | 0.0 to 100 Deg C | 0.1 Deg C | +/-1 Deg |
Additional Information:
Auto Universal Titrator with Graphic LCD
- Views: 174
- Product Code: 354
- Availability: In Stock
- ₹0
