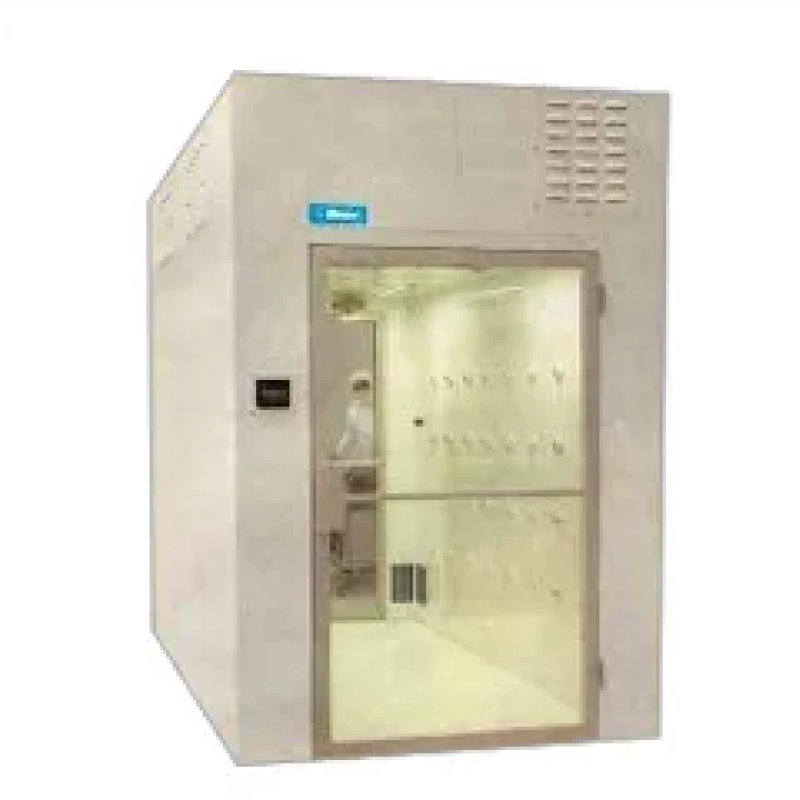

Air Showers Men Entry

Product Details :

We specialize in offering a wide assortment of Air Showers that helps to minimize the amount of particulate contaminants that are washed off with high velocity HEPA filtered air jets. Our range is self contained air chambers and installed at the entrance to clean rooms. Furthermore, the high air velocity of 20-22 m/s shower assist in the efficient scrubbing action and makes it necessary to remove particulate matter. The contaminated air is then taken in through the base of the unit, which is filtered and then re-circulated into the chamber.

MOC of Construction :

1.   SS 304 construction with PVC mat 4 finish

1. GI Powder coating / Painting Constriction

Technical Specifications :

• Direction of flow : 3 Way
• Cleanliness : CLASS 1000
• Velocity : 20 to 22 M/S
• HEPA Filter : 0.3micron Mini Pleat with 99.997% efficiency
• Particle retention : Above 0. 3 micron
• Blower Assembly : 1 / 2 HP, 2880 RPM
• Noise level : 65 decibel + / -5%
• Vibration level : < 2. 5 micron

Fittings :

• Microprocessor based Operation system and feather touch switches
• 3 Phase Electrical Panel board with Electrical Norms.
• Electronic Digital display with Time setting option systems
• Electro Magnetic Interlocking Systems with Emergency switches

Applications :

• Pharma, Biotech, Hospitals, Blood banks, Medical testing Labs, Food and Brew rage Industries, Painting and Printing Industries, Electronic Industries etc.,
