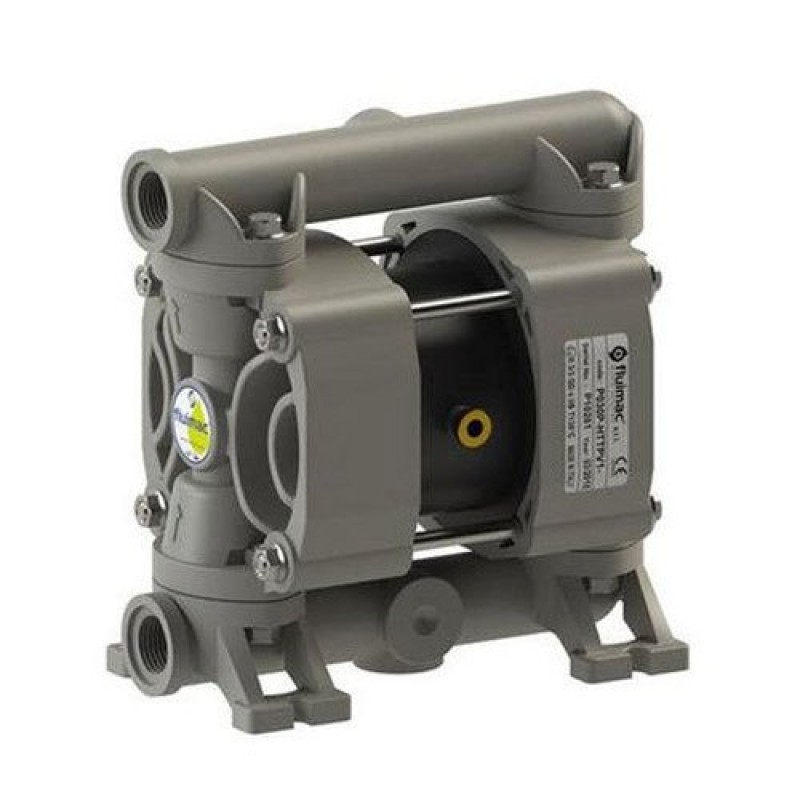

Air Operated Double Diaphram - AODD Pump

Product Details:

Power Source	Compressed Air
Model Name/Number	P30
Pump Type	AODD
Max Flow Rate	30 L/min
Head	80 M
Features	Max Viscosity Up To 25000 CPS, Can Run Dry, Pneumatic Operated.
Usage/Application	Pumping, Dosing- Chemicals / Fluids /Paints/ Food/ Pharma Product, Water Treatment
Maximum Intermittent Pressure	8 Bar
Media	Diaphragm Pump
Size	1/2" BSP
Product Type	Air Operated Double Diaphragm Pump
Weight	4 Kg
Warranty	18 months From Billing.
Negative Suction	Yes. Up to 80 m
Temperature	-4 degree C to 95 degree C
Sound Level	65 DB
Cooling Method	Air Cooled
Fuel	Compressed Air
Viscosity Range	15000 CPS
Max.Solid Passage	3 MM
Air Inlet Size	6 MM
Fluid Inlet Size	1/2" BSP
Wet Suction Lift	9.8 M
OEM	Yes
Brand	Fluimac
Material	PP, PVDF, ALU, SS
Max Delivery Head	70 M
Noise Level	65 DB
Displacement For Cycle	65 CC
Max Viscosity	15000 CPS
Self-priming Capacity	5 M
