At KLINOTECH™ We Design & Manufacture Air Handling Unit has a wide range of application in Cooling, Heating, Humidification & Ventilation etc. Air Handling unit are selected & high quality designs for our Air Handling Units to provide maximum output. We also offer economy series of Double skin unit. Our standard Ahu’s range is from 1000 Cfm to 35000 Cfm & can also be designed for higher capacity as per customer’s equirement. Our units are extensively used in Pharmaceuticals, Hospitals, Malls, Hotels , Offices, School, Industrial projects & other eco-friendly environment.
They are tailor made depending on the design, applications, availability of space and similar other parameters.
The Ahu’s can be broadly classified as :
Single Skin Ahu— For all ventilation application
Double skin Ahu— For all Air-conditioning application
Single Skin Ahu’s :
As the Name suggests, has a single casing made of G.I

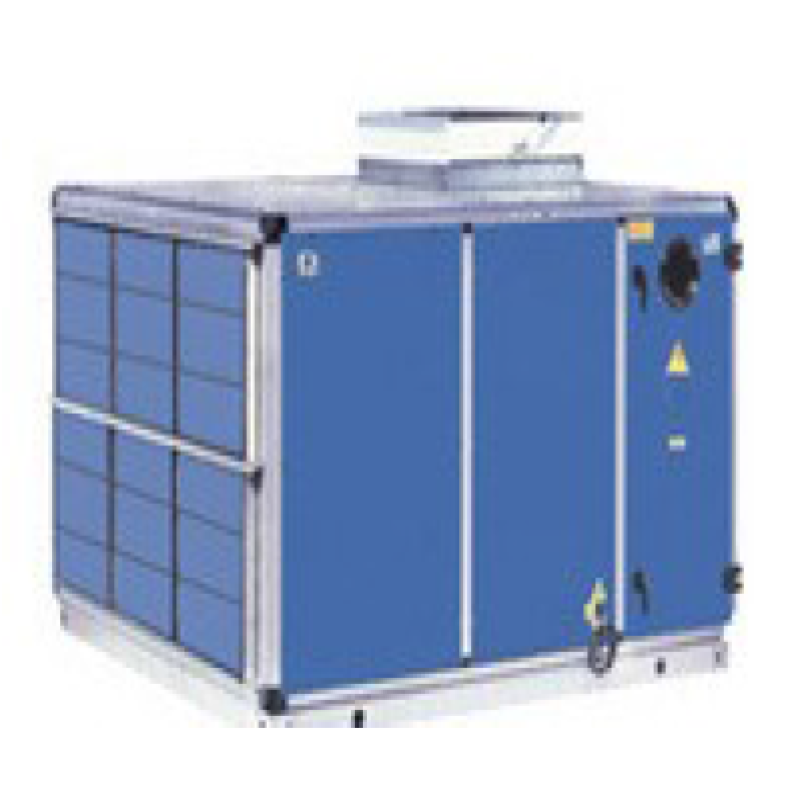

Double Skin Ahu’s :
As the name suggests, has a outer casing made of sandwiched
panels with puff foam acting as a thermal barrier
for better insulation.
Specifications Features :
| Application | Cooling , Heating , Humidification | ||

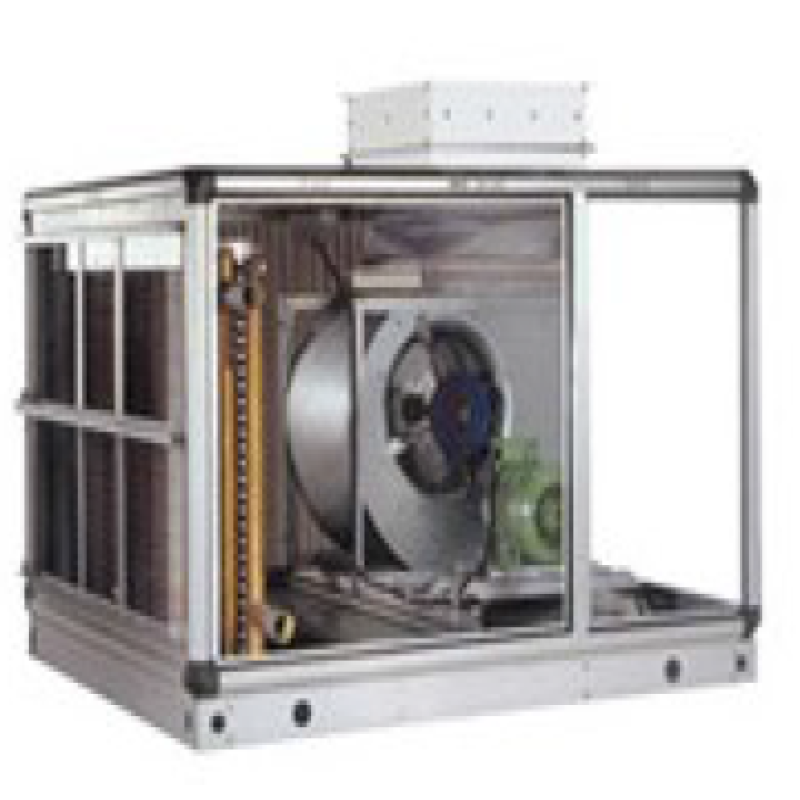

| Frame work | Main frame of self-supporting hollow extruded aluminum profile & nylon glass fibre corner joints. Thermal break construction as option. | ||
| Frame Panel | Double skin puff injected 25/43 mm thick sandwiched panel. Various skin option available in plain GSS, PrePainted GSS, Preplasticised Gss, Aluminum , Stainless Steel. | ||
| Fan Section | contains belts driven DIDW Forward / Backward / Areofoil Backward centrifugal Blower & direct-driven plug fan as per requirement | ||
| Fan / Motor Assembly | Fan & Motor Assembly mounted on common base frame of Prefabricated G.I Or Extruded aluminum profile on vibration isolators. | ||
| Drain Pan | Dual Slopping Stainless steel drain pan mounted on Puff insulated | bottom Panel | |
| Filter Section | The unit is provided with 10/20 micron, easily washable Pre filters. , These filters are generally confirming to EU-13, of EN-779 Specifications. Also, depending on the requirement, micro vee & HEPA filters can also be provided in the unit. | ||
| Optional Section | Mixing chamber– for fresh air & return air mixing. Manual / Motorized controls optional. Micro Vee / HEPA / Pre / EU-4 / EU-7 / EU-9 / EU-13 Filtration filter Section. Heat Recovery wheel section. Other special section as per individual customer requirements. |
