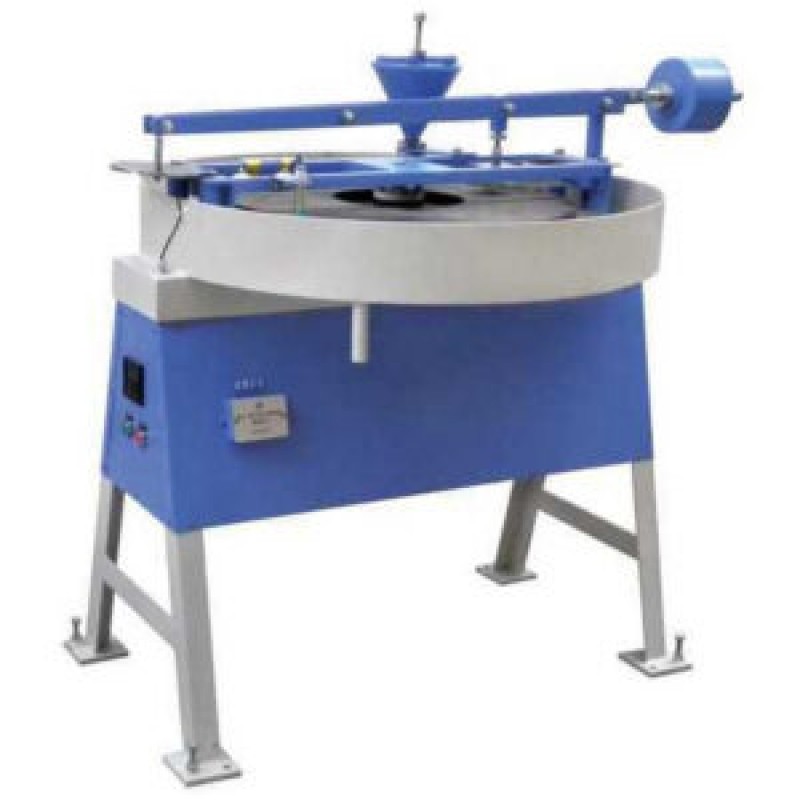

Tile Abrasion Testing Machine

Product Details:

Tile Abrasion Machine is used for determination of resistance to wear for Cement & Concrete flooring tiles. Tile’s specimen of size 7.06 cm x 7.06 cm is pressed face-wise under a specific load on a grinding path and abrasive powder is evenly spread on the rotating grinding disc the second parallel side of the tile is subjected to wear for a similar number of rotations. The wear of the tile is measured on a thickness gauge specifically made for the purpose.

SPECIFICATION

The machine consists of a disc rotating at a speed of 30 R.P.M. in a circular tray. A bracket is provided to hold the specimen. A counterbalance lever loads the specimen. The load applied is 30 Kgf. A funnel is fitted to evenly spread abrasive powder on the grinding path. A Pre-set Counter automatically stops the machine after 22 revolutions. This counter is Re-adjustable. The machine works on 440 V A.C. Three Phase electrical supply. On request machine to operate on 230 VA.C. Supply can also be supplied.
