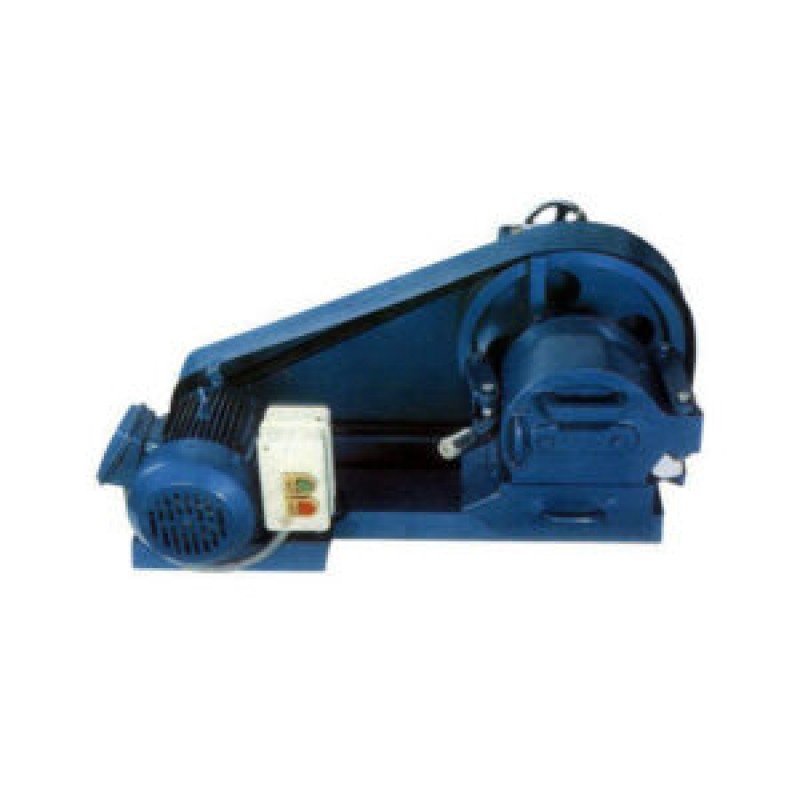

Pulverizer

Product Details:

Pulverizer is Designed for grinding materials to produce fine mesh samples Ideal for use in Cement and Chemical Industries.

SPECIFICATION

• Pulveriser Have Self-contained grinder with a rotating disc having planetary movement in vertical plane Reduces about 450g quartz type material to 100 mesh in one minute.
• Pulveriser Self-contained grinder with a rotating disc having a planetary movement in a vertical plane.

• Reduces about 450g quartz type material to 100 mesh in one minute.
• Dia. of grinding wheel: 175mm.

• The material of the grinding wheel: High Carbon Steel having 53-60 HRC hardness.
• The input of material: 6mm.

• Suitable for operation with 440V, Three Phase, A.C. supply.
• V-belt pulley drive and mounting.
• Disc diameter: 175mm.
• Maximum feed Size: 8mm (approx) size of finished.

• Product: 72 mesh (212 microns).
• The pulverizer is supplied complete with a 3 H.P. motor.
• starting switch
