Adjustable PCB Carrier

Product Details :

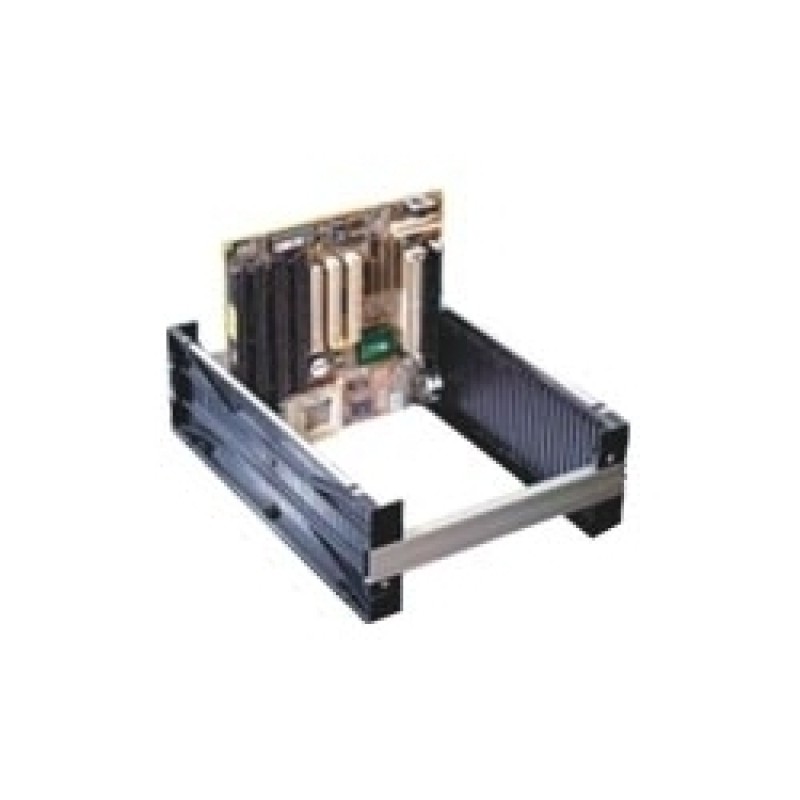

Conductive adjustable PCB Carrier No. 5 Adjustable PCB Carriers can be used for protection of boards during storage or transport in assembly line or integrate with automatic component insertion machines. They can be stacked one on each other. Each PCB Carrier has distinctly numbered on white background, 31 slots which can hold a maximum of 31 PCB's. Special Aluminium Guides have a unique design which remains Flush with PCB Carriers.They help in adjusting the width as per the Size of PCB,s Three lengths of aluminum guides are available i.e. 253 mm, 353mm and 553mm.

• Adjustable Pcb Carrier No.: 5
• Useful for small to medium Boards
• Size of sides 350mm x 105mm
• Use different size of Aluminium guides to make the configuration as per the size of PCB.
• Conductive Adjustable PCB Carrier NO.: 5
• Set of 2 pcs. - Colour Black
• Art No.: APCR5 - C
• Non Conductive Adjustable PCB Carrier NO.: 5
• Set of 2 pcs. - Colour Grey
• Art No.: APCR5 - N
• Order aluminium guides separately.

Multi Use

Different sizes of PCB's can be fitted in two PCB Carriers as shown in the picture.

Aluminum Guides

Three Standard lengths Aluminum anodized guides are available Longer lengths useful for handling different sizes of PCB's are available on request.

Length

• 253 mm Set of 2 pcs. Art No.: APCRG -2
• 353 mm Set of 2 pcs. Art No.: APCRG -3
• 553 mm Set of 2 pcs. Art No.: APCRG -5
