Technical Specifications :
- Model – PMTU/600/180/H
- Center height:- 180 mm.
- Swing over table :- 360 mm
- Admit between center:- 600 mm
- Work head swivel: - ± 90°
- Wheel head swivel: - +45°
- Work head speed: - Infinitely variable – 20 to 600 rpm by AC, 3 ph. imported VFD.
- Grinding wheel size: - Ø 400 x 60 x 127 mm.
- Work head Morse Taper: - MT – 4.
- Tail stock Morse Taper: - MT – 4.
- Separate hydraulic power pack unit fitted with 24v D.C Valve but without Enclo – 68 Oil.
- Inbuilt electrical control penal board having all reputed components.
- Simple coolant tank with Pump and piping.
- More rigid and precise Tailstock having 25 mm traverses.
- Manually feed resolution: - 0.005 mm on radius.
- Turcite –B slide way coated on both moveable slides to prevent stick slip motion.
- Auto in-feed is available on customer demand as a optional cost.
- Automatic plunge grinding cycle having in-processing electronic gauge with automatic size control is also available on customer demand as a optional cost.
POWER: -
- Work head: - 1 hp
- Wheel head: - 5 hp
- Hydraulic: - 1 hp
- Coolant pump:- 0.16 hp
- Total hp: - 7.16 hp

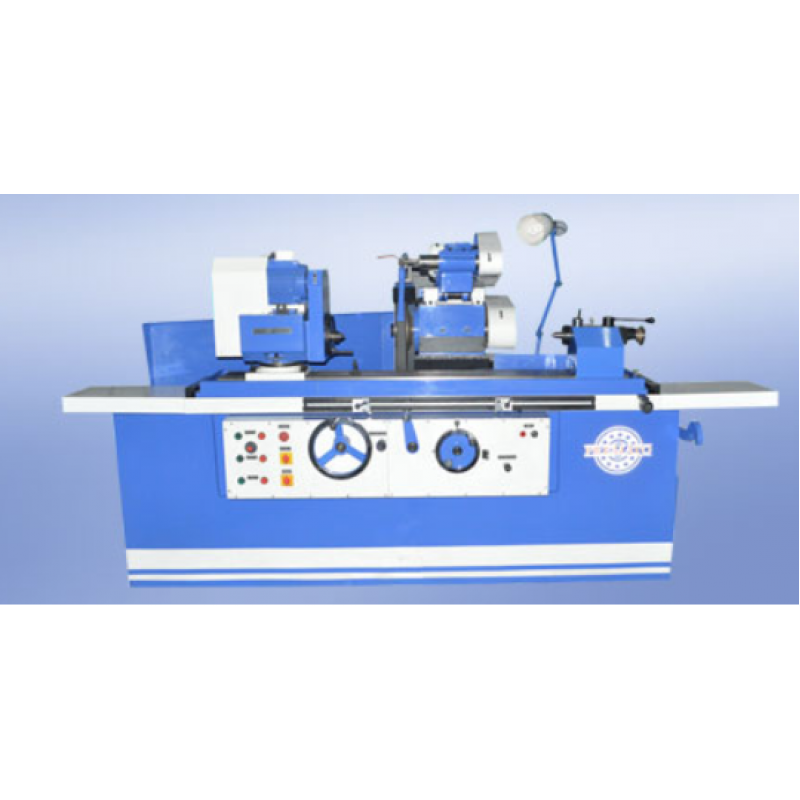

Abc-1000mm/200ch Hydraulic Cylindrical Grinding Machine
