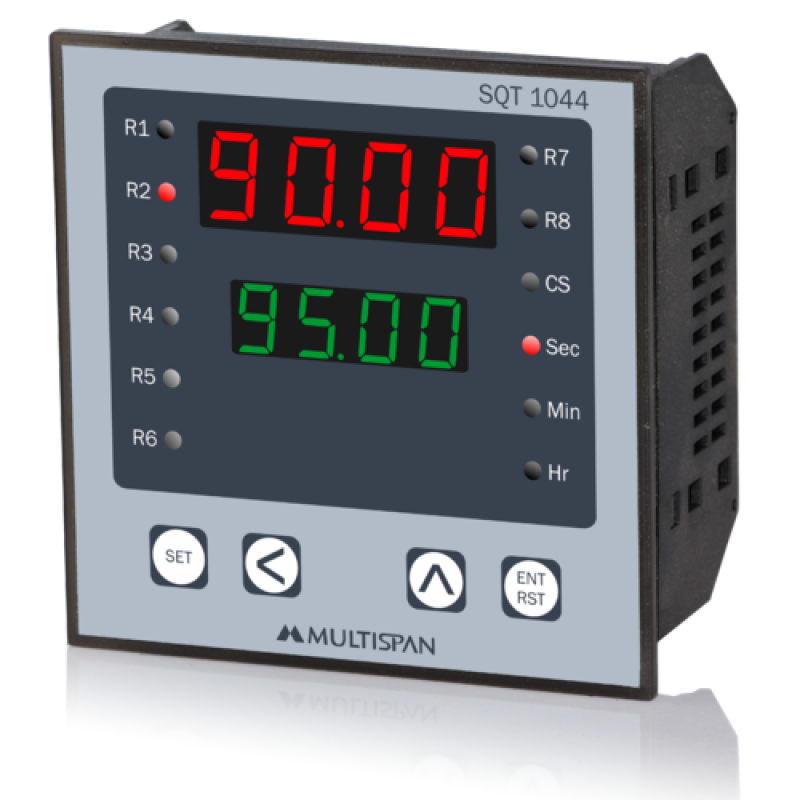

MODEL

SQT-1044/SQT-1244

SQT - 1044

Dimension (HxWxD) mm

96 x 96 x 50

96 x 96 x 50

Panel Cutout (mm)

92X 92

92X 92

Display OUTPUT

Upper : 7 segment, 4 digit, 0.56" RED LED display- Time Lower : 7 segment, 4 digit, 0.4" GREEN LED display- Set time

Control output

8 - Relay/12 Relay

Relay Ratings

1C/O, 5A, 230V AC

SSR / BUZZER

12V DC approximately

Control Action

Delayed ON / Instant ON / Cycle mode (Configurable)

Relay status

LED for Relay Status Indication

Cascading

Available upto 4 timer

Reset Facility

Front & Back Reset Available

Time Setting Range

99.99 sec / 99.59 min/sec / 99.59 hrs/min/ 999.9 hrs

Start pulse

Trigger / Enable / Power on (Configurable)

Set Point

8 - individual set point (Configurable)

Memory retention

Non-Volatile Memory

Power Supply

100-250 V AC / DC, 50/60Hz, SMPS

Enclosure Material

Plastic

Operating Ambient Temp

0°C - 55°C

Relative Humidity

Upto 95% RH Non Condensing

NOTE:

SSR output is available on request
