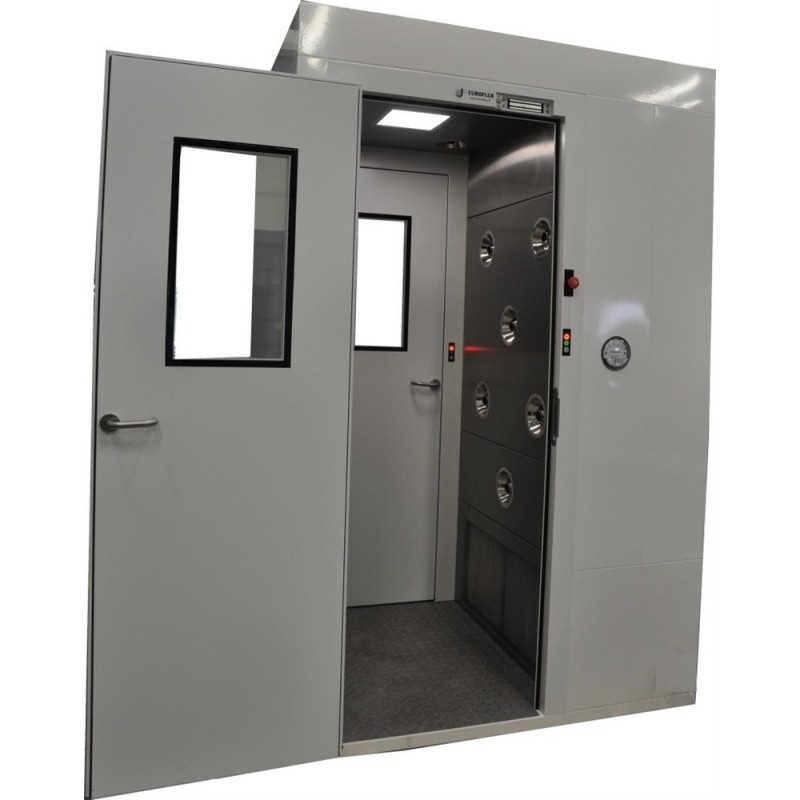

"Klinotech" Design & Manufacture Air Shower & built to remove surface particles from personnel like lint, dirt, dust, etc.  From the personnel entering or exiting the cleanroom area.

TECHNICAL DETAILS

• SS304 / SS316 / CRCA Powder Coated Construction except for filter & motor-blower assemblies which will be in standard execution.
• Minipleat HEPA  Filter with hot melt technology, which conforms to EU13 Grade, with an efficiency rating better than 99.99% for 0.3 microns at supply.
• Intermediate filter which conforms to EU7 Grade, with an efficiency of 95% down to 3 microns.  These filters are basically made from micro-fiber-glass media & are inherently washable.
• Motor, Blower provided are statically and dynamically balanced to supply airflow with sufficient capacity and static pressure for the entire life of HEPA.  The blower is a high performance, noise abated and light-weighted.
• SS304 / SS316 / CRCA Powder coated double-walled side panels.
• Magnahelic Differntial Pressure Gauge (0-25 mm or 0-50 mm) to monitor pressure drop across HEPA Filter.
• Electrical Control panel mounted on the side panel of the unit.
• Fluorescent Light (250 Lux).
• ON/OFF Switches for motor & lights.
• DOP Test Port at upstream of HEPA Filter.
